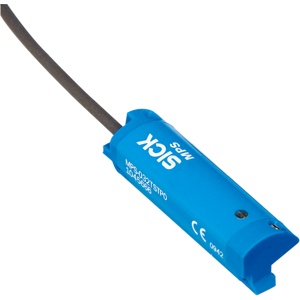

MPS-064TSTP0: Sick Industrial T-Slot Cylinder Solutions
Technical specifications of Sick Industrial T-Slot Cylinder Solutions MPS-064TSTP0 opq2m42m7&81:
| Housing Length | 77 mm |
| Measuring Range | 64 mm |
| Output Function | Analog |
| Connection Type | Cable with M8 male connector, 4-pin, 0.3 m |
Sick Industrial T-Slot Cylinder Solutions MPS-064TSTP0 Technical Specifications:
| Specification | Value |
|---|---|
| Cylinder Type | T-slot |
| Cylinder Types with Adapter | Round body cylinderProfile cylinders and tie-rod cylindersDovetail groove cylinderSMC rail CDQ2SMC rail ECDQ2SMC cylinders with C-slot |
| Measuring Range | 64 mm |
| Housing Length | 77 mm |
| Output Function | Analog |
| Electrical Wiring | DC 4-wire |
| Analog Output (Voltage) | 0 V ... 10 V |
| Analog Output (Current) | 4 mA ... 20 mA |
| Enclosure Rating | IP67 |
| Teach-In Control Panel | - |
| Supply Voltage | 15 V DC ... 30 V DC |
| Power Consumption | 22 mA, without load |
| Max. Load Resistance | ≤ 500 Ω Power Output, at 24 V |
| Min. Load Resistance | ≥ 2 kΩ |
| Protection Class | III |
| Time Delay Before Availability | 1.5 s |
| Required Magnetic Field Sensitivity (Typ.) | 4 mT ... 30 mT |
| Resolution (Typ.) | 0.03 % FSR (max. ≥ 0.05 mm) |
| Linearity Error (Typ.) | 0.3 mm |
| Repeat Accuracy (Typ.) | 0.06 % FSR (≥ 0.1 mm) |
| Sampling Rate (Typ.) | 1 ms |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Status Indicator LED | Yes |
| Teach-In | - |
| Ambient Operating Temperature | –20 °C ... +70 °C |
| Shock and Vibration Resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| EMC | According to EN 60947-5-7 |
| Connection Type | Cable with M8 male connector, 4-pin, 0.3 m |
| Conductor Cross Section | 0.08 mm² |
| Cable Diameter | Ø 2.6 mm |
| Bending Radius | With fixed installation > 5 x cable diameter |
| Cable Outlet | Axial |
| Material Housing / Plastic Cable PUR | Material |
| Housing | Plastic |
| Cable | PUR |
Mail Us for your needs in Sick Industrial T-Slot Cylinder Solutions MPS-064TSTP0 with budget-friendly prices. The Main Technical Parameters of MPS-064TSTP0 include housing length of 77 mm and an Analog output function, making them ideal for precise industrial applications. These sensors use DC 4-wire electrical wiring and support analog output for both voltage 0 V ... 10 V and current 4 mA ... 20 mA. The enclosure is rated IP67, ensuring durability in harsh environments. The supply voltage ranges from 15 V DC ... 30 V DC, with a power consumption of 22 mA, without load. The maximum load resistance is ≤ 500 Ω Power Output, at 24 V, providing reliable performance under various conditions. The connection type includes a Cable with M8 male connector, 4-pin, 0.3 m length. The housing is made of durable Plastic, and the cable is constructed with high-quality PUR and Material. Customize Your Experience with a Quote for your requirement of Sick Industrial T-Slot Cylinder Solutions. Experience the difference with our competitive pricing and superior support over other Suppliers.
