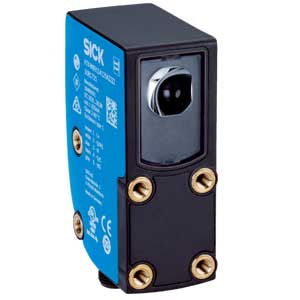

Sick KTX-WP91242242ZZZZ Contrast Sensor
Sick KTX-WP91242242ZZZZ Contrast Sensor provides β€25 mm sensing distance, PNP switching output, and 10.8β28.8 V DC supply voltage operation. The KTX-WP91242242ZZZZ belongs to the Sick Contrast Sensor portfolio within the KT series from Sick, featuring LED RGB light source, 1.2 mm x 5.3 mm vertical light spot, 10 Β΅s response time, IP67 enclosure rating, large 30 x 53 x 78.5 mm housing, M12 4-pin connector, and β20 Β°C to +60 Β°C ambient operating range.
| Brand | Sick |
| Product Type | Contrast Sensor |
| Product | KTX-WP91242242ZZZZ |
Sick KTX-WP91242242ZZZZ Contrast Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 30 mm x 53 mm x 78.5 mm |
| Sensing distance | β€ 25 mm |
| Sensing distance tolerance | Β± 6 mm |
| Housing design | Large |
| Light source | LED, RGB |
| Wave length | 470 nm, 525 nm, 625 nm |
| Light spot size | 1.2 mm x 5.3 mm |
| Light spot direction | Vertical 2) |
| Adjustment | - |
| Supply voltage | 10.8 V DC ... 28.8 V DC |
| Response time | 10 Β΅s 6) 7) |
| Switching output | PNP |
| Switching mode | - |
| Enclosure rating | IP67 |
| Connection type | Male connector M12, 4-pin |
| Ambient operating temperature | β20 Β°C ... +60 Β°C |
The KTX-WP91242242ZZZZ Sick LED, RGB Large Housing Contrast Sensor is designed for industrial automation applications requiring stable contrast detection. It operates with β€25 mm sensing distance and delivers PNP switching output for controller integration. The sensor supports 10.8β28.8 V DC supply voltage and provides 10 Β΅s response time for fast signal processing. KTX-WP91242242ZZZZ is part of the KT series and features a large housing format with IP67 protection.
In packaging lines, labeling machines, conveyor systems, and automated assembly equipment, the KTX-WP91242242ZZZZ ensures consistent detection of printed marks and color differences. The RGB LED light source with vertical light spot direction improves reliability across varying surface contrasts. The M12 4-pin connection allows standard industrial wiring practices.
The KTX-WP91242242ZZZZ Sick LED, RGB Large Housing Contrast Sensor is built for continuous industrial operation. With IP67 enclosure rating and β20 Β°C to +60 Β°C operating temperature range, it supports dependable performance in factory environments. Sick maintains uniform electrical standards across the KT series for stable contrast sensing integration.
