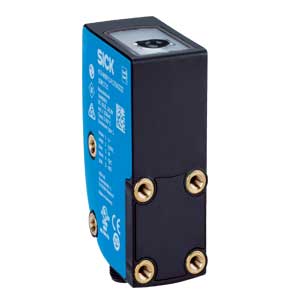

Sick KTX-WB9114225AZZZZ Contrast Sensor
Sick KTX-WB9114225AZZZZ Contrast Sensor provides β€ 13 mm sensing distance, RGB LED light source, and 3 Β΅s response time performance. This Sick 5-pin Male Connector Contrast Sensor features push-pull PNP/NPN switching output, IP67 enclosure rating, 10.8β28.8 V DC supply, 30 mm Γ 53 mm Γ 78.5 mm housing dimensions, Β±5 mm sensing tolerance, vertical light spot direction, male connector M12 5-pin connection, and belongs to the KT series for industrial automation in India.
| Brand | Sick |
| Product Type | Contrast Sensor |
| Product | KTX-WB9114225AZZZZ |
Sick KTX-WB9114225AZZZZ Contrast Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 30 mm x 53 mm x 78.5 mm |
| Sensing distance | β€ 13 mm |
| Sensing distance tolerance | Β± 5 mm |
| Housing design | Large |
| Light source | LED, RGB |
| Wave length | 470 nm, 525 nm, 625 nm |
| Light spot size | 0.9 mm x 3.8 mm |
| Light spot direction | Vertical 2) |
| Adjustment | - |
| Supply voltage | 10.8 V DC ... 28.8 V DC |
| Response time | 3 Β΅s 6) 7) |
| Switching output | Push-pull: PNP/NPN |
| Switching mode | - |
| Enclosure rating | IP67 |
| Connection type | Male connector M12, 5-pin |
| Ambient operating temperature | β20 Β°C ... +60 Β°C |
KTX-WB9114225AZZZZ Sick 5-pin Male Connector Contrast Sensor is designed for high-speed contrast detection in industrial automation systems. The KTX-WB9114225AZZZZ Sick 5-pin Male Connector Contrast Sensor delivers β€ 13 mm sensing distance, RGB LED light source, 3 Β΅s response time, and push-pull PNP/NPN switching output for flexible control integration. It belongs to the KT series and operates on 10.8β28.8 V DC supply with IP67 enclosure protection for reliable factory use.
The KTX-WB9114225AZZZZ is commonly applied in packaging machines, conveyor systems, printing lines, and automated assembly processes requiring precise contrast mark detection. Its fast 3 Β΅s response time supports high-speed production environments, while the RGB LED enables accurate sensing across varying surface colors. The M12 5-pin connector ensures secure electrical connectivity in industrial control panels.
KTX-WB9114225AZZZZ Sick 5-pin Male Connector Contrast Sensor combines controlled sensing tolerance, durable IP67 housing, and dual-output configuration for dependable industrial performance. As part of the KT series, this Sick model supports operation within β20 Β°C to +60 Β°C ambient conditions. For engineers and industrial buyers, the KTX-WB9114225AZZZZ ensures structured compatibility within Sick contrast sensor portfolios and reliable integration into automation systems.
