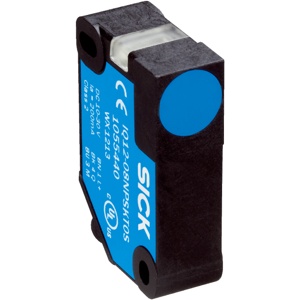

Sick IQ12-08NPOKW2S Proximity Sensor
The Sick IQ12-08NPOKW2S Proximity Sensor offers a Rectangular, 8 mm sensing range, Non-flush installation type, PNP NC output, and Cable, 3-wire, 2 m connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IMS/IMP Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IQ12-08NPOKW2S |
Sick IQ12-08NPOKW2S Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Housing | Rectangular |
| Sensing range Sn | 8 mm |
| Safe sensing range Sa | 6.48 mm |
| Installation type | Non-flush |
| Switching frequency | 2,000 Hz |
| Connection type | Cable, 3-wire, 2 m |
| Switching output | PNP |
| Output function | NC |
| Electrical wiring | DC 3-wire |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | ≤ 10 % 1) |
| Voltage drop | ≤ 3 V 2) |
| Time delay before availability | ≤ 100 ms |
| Hysteresis | 5 % ... 15 % |
| Reproducibility | ≤ 2 % 3) 4) |
| Temperature drift (of Sr) | ± 10 % |
| Continuous current Ia | ≤ 200 mA |
| No load current | 10 mA |
| Ambient operating temperature | –25 °C ... +75 °C |
| Housing material | Plastic, VISTAL® |
| Sensing face material | Plastic, VISTAL® |
| Tightening torque, max. | ≤ 1 Nm |
| Cable material | PVC |
