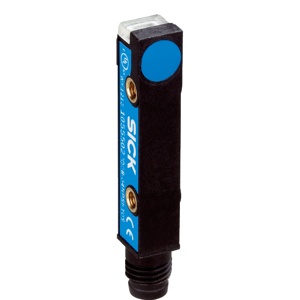

Sick IQ08-02BNOKT0S Proximity Sensor
The Sick IQ08-02BNOKT0S Proximity Sensor offers a Rectangular, 2 mm sensing range, Flush installation type, NPN NC output, and Connector M8, 3-pin connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IQ Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IQ08-02BNOKT0S |
Sick IQ08-02BNOKT0S Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Housing | Rectangular |
| Sensing range Sn | 2 mm |
| Safe sensing range Sa | 1.62 mm |
| Installation type | Flush |
| Switching frequency | 2,000 Hz |
| Connection type | Connector M8, 3-pin |
| Switching output | NPN |
| Output function | NC |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP67, IP68 1) |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | ≤ 10 % 1) |
| Voltage drop | ≤ 2 V 2) |
| Time delay before availability | ≤ 100 ms |
| Hysteresis | 5 % ... 15 % |
| Reproducibility | ≤ 2 % 3) 4) |
| Temperature drift (of Sr) | ± 10 % |
| Continuous current Ia | ≤ 200 mA |
| No load current | 10 mA |
| Ambient operating temperature | –25 °C ... +75 °C |
| Housing material | Plastic, VISTAL® |
| Sensing face material | Plastic, VISTAL® |
| Tightening torque, max. | ≤ 1.5 Nm |
| Unit weight | 10.000 Grams |
| Net unit weight | 10 Grams |
| Country of origin | Malaysia |
