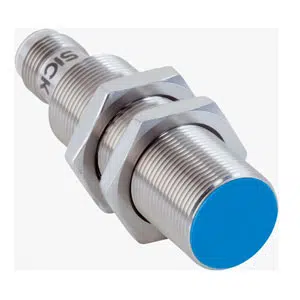

IMS18-08BNSNC0S: 1103186 - Sick M18 NPN Inductive Sensor
The Sick IMS18-08BNSNC0S Proximity Sensor provides 8 mm sensing range, M18 housing, NPN NO output, and quasi-flush installation support. This Sick M18 NPN Inductive Sensor operates with 1,000 Hz switching frequency, DC 3-wire wiring, and IP68/IP69K enclosure, using an M12 4-pin connector with nickel-plated brass mounting nuts under the Sick brand, listed within Sick Proximity Sensors and categorized in the IM18 series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Product | IMS18-08BNSNC0S |
Sick M18 NPN Inductive Sensor IMS18-08BNSNC0S, 1103186 Technical Specifications:
| Specification | Value |
|---|---|
| Housing | Cylindrical thread design, Standard design |
| Thread size | M18 x 1 |
| Diameter | Γ 18 mm |
| Sensing range Sn | 8 mm |
| Safe sensing range Sa | 6.48 mm |
| Installation type | Quasi-flush 1) |
| Switching frequency | 1,000 Hz |
| Connection type | Male connector M12, 4-pin 2) |
| Switching output | NPN |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP68 3), IP69K 4) |
| Special features | Resistant to cleaning agents, Temperature resistance |
| Special applications | Mobile machines, Hygienic and washdown zones, Difficult application conditions |
| Items supplied | Mounting nut, brass, nickel-plated (2x) |
Get A Quote for Sick M18 NPN Inductive Sensor IMS18-08BNSNC0S part no: 1103186 at unbeatable prices. Detailed Specifications of IMS18-08BNSNC0S, 1103186 feature Cylindrical thread design, Standard design housing, M18 x 1 thread size, Γ 18 mm diameter, 8 mm sensing range, 6.48 mm safe sensing range, Quasi-flush Installation, 1,000 Hz frequency, Male connector M12, 4-pin , NPN, NO output, DC 3-wire . Match Your Needs with a Quote for your requirement of Sick M18 NPN Inductive Sensor. Our pricing and support are unrivaled, especially when compared to other Distributors.
