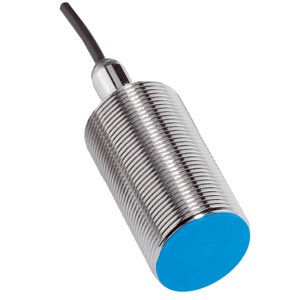

Sick IME30-15BPPZUDSS28 Proximity Sensor
The Sick IME30-15BPPZUDSS28 Proximity Sensor offers a Metric; Standard design, 15 mm sensing range, Flush installation type, PNP Complementary output, and Cable, 4-wire, 15 m connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IME Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IME30-15BPPZUDSS28 |
Sick IME30-15BPPZUDSS28 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Metric; Standard design |
| Thread size | M30 1.5 |
| Diameter | Γ 30 mm |
| Sensing range Sn | 15 mm |
| Installation type | Flush |
| Switching frequency | 500 Hz |
| Connection type | Cable, 4-wire, 15 m |
| Switching output | PNP |
| Output function | Complementary |
| Electrical wiring | DC 4-wire |
| Enclosure rating | IP67 1) |
| Items supplied | Mounting nut, brass, nickel-plated (2x) |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | β€ 10 % |
| Voltage drop | β€ 2 V 1) |
| Time delay before availability | β€ 125 ms |
| Hysteresis | 3 % ... 15 % |
| Reproducibility | β€ 2 % 2) 3) |
| Temperature drift (of Sr) | Β± 10 % |
| Continuous current Ia | β€ 200 mA |
| No load current | β€ 10 mA |
| Ambient operating temperature | β25 Β°C ... +75 Β°C |
| Housing material | Brass, nickel-plated |
| Sensing face material | Plastic, PA 66 |
| Housing length | 70 mm |
| Thread length | 54 mm |
| Tightening torque, max. | β€ 100 Nm |
| Unit weight | 0.471 Kilograms |
| Net unit weight | 0.471 Kilograms |
| Country of origin | Hungary |
