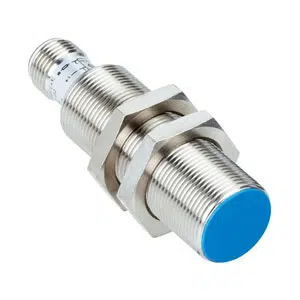

Sick IM18-08NUO-ZU0 Proximity Sensor
The Sick IM18-08NUO-ZU0 proximity sensor offers 8 mm sensing range, non-flush installation, AC/DC 2-wire wiring, and IP67 protection. Manufactured by Sick, this Sick proximity sensor belongs to the IME series and uses a Ø 18 mm cylindrical housing, M18 x 1 thread, 8 mm nominal sensing distance, normally closed output, and 2 m cable connection.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IM18-08NUO-ZU0 |
Sick IM18-08NUO-ZU0 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Housing | Cylindrical thread design, Standard design |
| Thread size | M18 x 1 |
| Diameter | Ø 18 mm |
| Sensing range Sn | 8 mm |
| Safe sensing range Sa | 6.48 mm |
| Installation type | Non-flush |
| Switching frequency | 25 Hz 1), 50 Hz 2) |
| Connection type | 2 m Cable |
| Switching output | - |
| Output function | NC |
| Electrical wiring | AC/DC 2-wire |
| Enclosure rating | IP67 3) |
| Items supplied | Mounting nut, brass, nickel-plated (2x) |
The IM18-08NUO-ZU0 Sick 18 mm Inductive Proximity Sensor is a cylindrical inductive sensor designed for industrial automation applications. This Sick proximity sensor combines a 8 mm sensing range, non-flush mounting, and normally closed output in a robust M18 form factor. With AC/DC 2-wire electrical wiring and an IP67 enclosure rating, the IM18-08NUO-ZU0 is part of the IME series used across diverse industrial environments.
The IM18-08NUO-ZU0 proximity sensor is applied in conveyors, material handling systems, packaging machines, and automated assembly equipment. Non-flush installation supports extended sensing distances, while the defined switching frequency enables stable detection of moving metal objects. The AC/DC 2-wire design allows flexible integration into mixed-voltage control systems commonly used in industrial automation.
The Sick IM18-08NUO-ZU0 proximity sensor delivers reliable performance through mechanical stability and electrical consistency. Featuring a Ø 18 mm cylindrical housing, 8 mm sensing distance, and IP67-rated enclosure, it meets standard industrial operating requirements. As a member of the Sick IME proximity sensor series, this model is selected for durability, installation compatibility, and long-term use in industrial automation systems.
