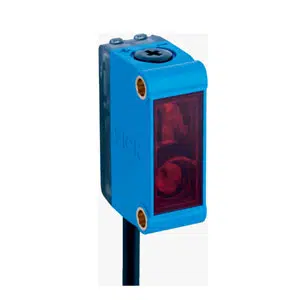

Sick GTB6-N0211S36 Photoelectric Sensor
Sick GTB6-N0211S36 photoelectric sensor provides background suppression detection with 5 mm to 250 mm range, NPN output, and 1000 Hz switching frequency. The GTB6-N0211S36, a Sick 5 m Cable Photoelectric Proximity Sensor, features PinPoint LED light source, Ø 6 mm light spot, and IP67 enclosure rating. It supports < 625 µs response time, mechanical spindle adjustment, 3-wire 5 m cable connection, and operates on 10–30 V DC supply within Sick, Sick Photoelectric Sensors, and the G6 series.
| Brand | Sick |
| Product Type | Photoelectric Sensors |
| Model Number | GTB6-N0211S36 |
Sick GTB6-N0211S36 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression |
| Sensing range max. | 5 mm ... 250 mm |
| Sensing range | 35 mm ... 140 mm |
| Light source | PinPoint LED |
| Type of light | Visible red light |
| Light spot size (distance) | Ø 6 mm (100 mm) |
| Wave length | 650 nm |
| Adjustment | Mechanical spindle, 5 turns |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 30 mA 3) |
| Protection class | III |
| Digital Output type | NPN |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark selector |
| Signal voltage PNP HIGH/LOW | Approx. UB / ≤ 3 V |
| Output current Imax. | ≤ 100 mA 4) |
| Response time | < 625 µs 5) |
| Switching frequency | 1,000 Hz 6) |
| Housing | Rectangular |
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Connection | Cable, 3-wire, 5 m |
| Housing material | Plastic, ABS/PC |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| Weight | 60 g |
The GTB6-N0211S36 Sick 5 m Cable Photoelectric Proximity Sensor is designed for short-range detection using background suppression technology. It provides 5 mm to 250 mm sensing range, uses a PinPoint LED light source, and delivers NPN output with 1000 Hz switching frequency. As part of the G6 series, the GTB6-N0211S36 is used in industrial automation applications requiring precise sensing.
The GTB6-N0211S36 is suitable for conveyors, packaging machines, assembly lines, and material handling systems. Its background suppression capability ensures stable detection of objects regardless of background variations. The integrated 5 m cable allows flexible installation in machines where extended wiring is required.
The Sick GTB6-N0211S36 Photoelectric Sensor provides consistent sensing performance with defined electrical characteristics. The GTB6-N0211S36 in the G6 series supports reliable operation across industrial environments. As part of the Sick product range, it is used in applications requiring accurate and repeatable object detection.
