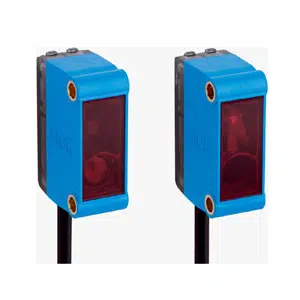

Sick GSE6-P1112 Photoelectric Sensor
Sick GSE6-P1112 photoelectric sensor provides through-beam detection with up to 10 m sensing range, PNP output, and 1000 Hz switching frequency. The GSE6-P1112, a Sick Rectangular Through-beam Photo Sensor, features 650 nm PinPoint LED, IP67 enclosure rating, and < 500 µs response time. It supports light/dark switching, 3-wire cable connection, and operates on 10–30 V DC supply within Sick, Sick Photoelectric Sensors, and the G6 series.
| Brand | Sick |
| Product Type | Photoelectric Sensors |
| Model Number | GSE6-P1112 |
Sick GSE6-P1112 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Through-beam photoelectric sensor |
| Functional principle detail | - |
| Sensing range max. | 0 m ... 15 m |
| Sensing range | 0 m ... 10 m |
| Light source | PinPoint LED |
| Type of light | Visible red light |
| Light spot size (distance) | Ø 375 mm (12 m) |
| Wave length | 650 nm |
| Adjustment | None |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 30 mA 3) |
| Protection class | III |
| Digital Output type | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark selector |
| Signal voltage PNP HIGH/LOW | VS - (≤ 3 V) / approx. 0 V |
| Output current Imax. | ≤ 100 mA 4) |
| Response time | < 500 µs 5) |
| Switching frequency | 1,000 Hz 6) |
| Housing | Rectangular |
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Connection | Cable, 3-wire, 2 m |
| Housing material | Plastic, ABS/PC |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| Weight | 170 g |
The GSE6-P1112 Sick Rectangular Through-beam Photo Sensor is designed for long-distance detection in industrial automation systems. It offers up to 10 m sensing range, uses a 650 nm PinPoint LED, and provides PNP output with 1000 Hz switching frequency. As part of the G6 series, the GSE6-P1112 ensures stable performance.
The GSE6-P1112 is used in conveyor systems, packaging lines, assembly processes, and material handling setups. Its through-beam principle ensures reliable detection across longer distances, while light/dark switching allows flexible integration into different control systems. The rectangular housing supports easy installation in compact industrial environments.
The Sick GSE6-P1112 Photoelectric Sensor provides consistent detection with defined electrical and mechanical specifications. The GSE6-P1112 within the G6 series supports stable sensing across industrial applications. As part of the Sick portfolio, it is suitable for environments requiring accurate and repeatable object detection.
