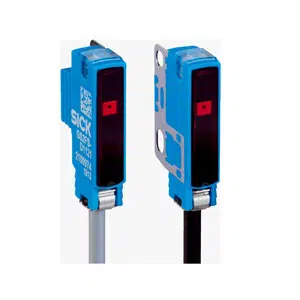

Sick GSE2FS-N0162S01 Photoelectric Sensor
The Sick GSE2FS-N0162S01 through-beam photoelectric sensor provides 1,300 mm sensing range, NPN output, PinPoint LED detection for industrial automation. This GSE2FS-N0162S01 Sick 1,300 mm Through-beam Photoelectric Sensor from Sick belongs to Sick Photoelectric Sensors and the GTB series, operating on 10–30 V DC with <0.625 ms response time, 800 Hz switching frequency, rectangular VISTAL® housing, PVC cable connection, and IP67 enclosure rating.
| Brand | Sick |
| Product Type | Photoelectric Sensor |
| Product | GSE2FS-N0162S01 |
Sick GSE2FS-N0162S01 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Through-beam photoelectric sensor |
| Functional principle detail | - |
| Dimensions (W x H x D) | 4.5 mm x 21 mm x 11 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0 mm ... 1,300 mm |
| Sensing range | 0 mm ... 1,000 mm |
| Type of Light | Visible red light |
| Light source | PinPoint LED |
| Light spot size (distance) | Ø 100 mm (1,000 mm) |
| Wave length | 660 nm |
| Adjustment | None |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 Vpp |
| Current consumption | 20 mA |
| Switching output | NPN |
| Switching mode | Light switching |
| Output current Imax. | ≤ 50 mA |
| Response time | < 0.625 ms |
| Switching frequency | 800 Hz 4) |
| Connection type | Cable, 3-wire, 500 mm 5) |
| Cable material | PVC |
| Cable diameter | Ø 2.3 mm |
| Housing material | Plastic, VISTAL® |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +50 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| Weight | 13 g |
The GSE2FS-N0162S01 Sick 1,300 mm Through-beam Photoelectric Sensor is a compact through-beam photoelectric sensor designed for reliable long-distance object detection in industrial automation. The GSE2FS-N0162S01 Sick 1,300 mm Through-beam Photoelectric Sensor operates with 0–1,300 mm sensing range, NPN switching output, visible red PinPoint LED, and 800 Hz switching frequency. It is part of the GTB series and supports precise optical sensing across automated systems.
This through-beam photoelectric sensor is used in conveyors, packaging lines, automated assembly stations, and material handling equipment. The defined Ø 100 mm light spot at long distances enables stable detection of objects across wide gaps, while the <0.625 ms response time supports fast-moving automation processes. IP67 protection and compact housing allow dependable operation in dust-prone and vibration-exposed environments.
The Sick GSE2FS-N0162S01 photoelectric sensor combines consistent optical performance with stable electrical behavior for industrial use. With 10–30 V DC supply, NPN output, and durable VISTAL® housing, it integrates smoothly into standard control systems. Supported by Sick sensor engineering and the GTB series platform, GSE2FS-N0162S01 is suitable for repeatable long-range sensing in industrial automation applications.
