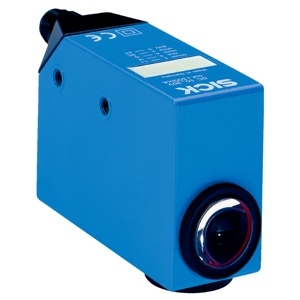

Home Brands Sick Color Sensors CS Series CS81-P3612S02 Sick CS81-P3612S02 Color Sensor The Sick CS81-P3612S02 Color Sensor offers a Rectangular design, β€ 60 mm sensing distance, LED, RGB light source, PNP output, and Male connector M12, 5-pin connection type. Manufactured by Sick under the Sick Color Sensor category, this model belongs to the CS Series.
Brand Sick Product Type Color Sensor Model Number CS81-P3612S02
Sick CS81-P3612S02 Color Sensor β Technical Specifications Specification Value Dimensions (W x H x D) 30.4 mm x 80 mm x 53 mm Sensing distance β€ 60 mm Sensing distance tolerance Β± 9 mm Housing design Rectangular Light source LED, RGB Wave length 640 nm, 525 nm, 470 nm Light spot size 13 mm x 13 mm Teach-in mode Static 1-point teach-in Supply voltage 10 V DC ... 30 V DC Ripple < 5 Vpp Switching frequency 1 kHz, 3 kHz, 6 kHz 4)adjustable Response time 500 Β΅s, 160 Β΅s, 85 Β΅s 5) Switching output PNP Switching output (voltage) PNP: HIGH = UV β€ 2 V / LOW approx. 0 V Output (channel) 1 color Output current Imax. 100 mA 6) Input, teach-in (ET) PNPTeach: U = 10 V ... < UVRun: U < 2 V Retention time (ET) 25 ms, non-volatile memory Connection type Male connector M12, 5-pin Enclosure rating IP67 Weight 400 g Housing material Metal, zinc diecast Ambient operating temperature β10 Β°C ... +55 Β°C Ambient temperature, storage β20 Β°C ... +75 Β°C Unit weight 0.358 Kilograms Net unit weight 0.358 Kilograms Country of origin Germany
