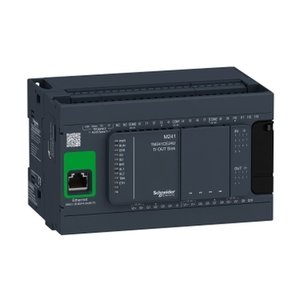

Schneider TM241CEC24R Programmable Logic Controller
TM241CEC24R is a high-performance Programmable Logic Controller PLC manufactured by Schneider Electric for modern industrial applications. Part of the Modicon M241 series, the TM241CEC24R offers fast logic execution, scalable I/O expansion, and robust communication protocols for smart automation.
| Brand | Schneider |
| Product Type | Programmable Logic Controller (PLC) |
| Product | TM241CEC24R |
Schneider TM241CEC24R Programmable Logic Controller – Technical Specifications
| Specification | Value |
|---|---|
| Model | TM241CEC24R |
| Manufacturer | Schneider Electric |
| Product Type | Programmable Logic Controller (PLC) |
| Series | Modicon TM241 |
| Power consumption in W | - |
| Output voltage limits | 125 V DC relay output30 V DC transistor output277 V AC relay output |
| Depth | 95 mm |
| Discrete input voltage type | DC |
| Maximum number of I/O expansion module | 7 (local I/O-Architecture)14 (remote I/O-Architecture) |
| Transmission rate | 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS4851.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232480 Mbit/s for bus length of 3 m for USB10/100 Mbit/s for Ethernet1000 kbit/s for bus length of 20 m for CANopen800 kbit/s for bus length of 40 m for CANopen500 kbit/s for bus length of 100 m for CANopen250 kbit/s for bus length of 250 m for CANopen125 kbit/s for bus length of 500 m for CANopen50 kbit/s for bus length of 1000 m for CANopen20 kbit/s for bus length of 2500 m for CANopen |
| Range of product | Modicon M241 |
| Width | 150 mm |
| Backup time | 2 years at 25 °C |
| Reset time | 10 ms automatic reset output12 s automatic reset fast output |
| Height | 90 mm |
| Discrete output type | TransistorRelay |
| Discrete output current | 2 A for relay output (Q4...Q9)0.1 A for fast output (PTO mode) (TR0...TR3)0.5 A for transistor output (TR0...TR3) |
| Response time | 50 µs turn-on, I0...I13 terminal(s) for input |
| Discrete output number | 6 relay4 transistor 4 fast output |
| Discrete output logic | Positive logic (source) |
| Shock resistance | 15 gn for 11 ms |
| Protection type | Short-circuit protection for transistor outputShort-circuit and overload protection with automatic reset for transistor outputReverse polarity protection for transistor outputWithout protection for relay output |
| Supply voltage limits | 85…264 V |
| Discrete input number | 14, discrete input 8 fast input conforming to IEC 61131-2 Type 1 |
| Communication port protocol | Non isolated serial link: Modbus master/slave |
| Inrush current | - |
| Electrical connection | removable screw terminal blockfor inputs and outputs (pitch 5.08 mm) removable screw terminal blockfor connecting the 24 V DC power supply (pitch 5.08 mm) |
| Net weight | 0.53 kg |
| Operating altitude | 0...2000 m |
| Discrete input voltage | 24 V |
| Ambient air temperature for storage | -25…70 °C |
| Storage altitude | 0…3000 m |
| Discrete input logic | Sink or source |
| Pollution Degree | 2 |
| Insulation | Between supply and internal logic at 500 V ACNon-insulated between supply and ground |
The Schneider TM241CEC24R delivers exceptional performance in industrial environments with its 125 V DC relay output, 30 V DC transistor output, and 277 V AC relay output. It operates with a power consumption range of 32.6 to 40.4 W and supports up to 14 I/O expansion modules for versatile system integration. With a compact depth of 95 mm and operating flexibility from 85 to 264 V supply voltage, this PLC ensures reliable performance at altitudes up to 2000 m.
