In most procurement cycles, VIE-SS4P-M12-S-G-5M-GN-2-X-D-1 is considered with Schmersal Limit Switch, Schmersal V Kk19P M23 S G 10M Bk X X X 1 and Schmersal Door Locking Devices, giving decision-makers confidence that theyβve chosen the most dependable component.

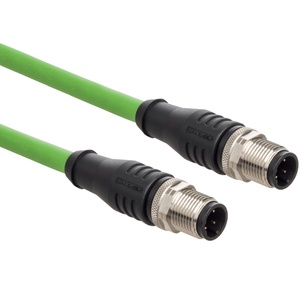

Schmersal VIE-SS4P-M12-S-G-5M-GN-2-X-D-1: 103013439 - M12 Connecting Cables
Technical Specifications of Schmersal M12 Connecting Cables VIE-SS4P-M12-S-G-5M-GN-2-X-D-1:
| Number of cable wires | 4 |
| Length of cable | 5 m |
| Connector types | Male connector, M12 |
| Design | straight |
Schmersal M12 Connecting Cables VIE-SS4P-M12-S-G-5M-GN-2-X-D-1 103013439 Technical Specifications
| Specification | Value |
|---|---|
| Number of cable wires | 4 |
| Tightening torque, maximum | 1 Nm |
| Length of cable | 5 m |
| Wire cross-section | 0.25 mm2 |
| Colour of the Cable mantle | Green |
| Connector types | Male connector, M12 |
| Design | straight |
| Connector coding | D |
| Connector latching | Screw locking |
| Material of the gland | Metal, CuZn, nickel-plated |
| Colour of the handle | Black |
| Connector type | Male connector, M12 |
| Connector side B - Design | straight |
| Connector side B - Connector coding | D |
| Connector side B - Connector latching | Screw locking |
| Connector side B - Material of the gland | Metal, CuZn, nickel-plated |
| Connector side B - Colour of the handle | Black |
| Thermal test current | 4 A |
| Connection technique - Cable diameter | 6.5 mm |
| Bending radius (fixed) | 4 x Γ-cable |
| Bending radius (repeated) | 8 x Γ-cable |
| Material of the Cable mantle | PUR |
| Material of the handle | Plastic, TPU |
| Material of the handle | Plastic, TPU |
| Degree of protection | IP65IP67IP68 |
| Ambient temperature (Connector) | -30 ... +90 Β°C |
| Ambient temperature (fixed) | -40 ... +75 Β°C |
| Ambient temperature (moved) | -30 ... +70 Β°C |
| Rated operating voltage | 60 VDC |
| Gross weight | 350 g |
Mail Us for Schmersal M12 Connecting Cables VIE-SS4P-M12-S-G-5M-GN-2-X-D-1 Item No: 103013439 at the lowest pricing. Technical Specs Summary of VIE-SS4P-M12-S-G-5M-GN-2-X-D-1, 103013439 are 4 individual cable wires with a wire cross-section of 0.25 mm2, ideal for efficient signal transmission. It comes with a sturdy Male connector, M12 in a straight design, equipped with Screw locking for secure connections. The cable has a total length of 5 m meters and supports a maximum tightening torque of 1 Nm, ensuring safe and firm installation. The outer mantle of the cable is Green, while the handle is Black, providing a clear color distinction for easy identification. The connector gland is made of Metal, CuZn, nickel-plated, offering excellent durability and corrosion resistance in industrial environments. The overall gross weight of the cable is 350 g making it lightweight yet robust. Navigate Your Needs with a Quote for your requirement of Schmersal M12 Connecting Cables VIE-SS4P-M12-S-G-5M-GN-2-X-D-1. We excel in offering more cost-effective and supportive solutions than other Competitors.
