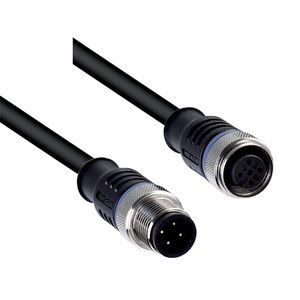

Schmersal V-SK4P-M12/M8-S-G-2M-BK-2-X-A-4: 103003649 - M12 Connecting Cables
Technical Specifications of Schmersal M12 Connecting Cables V-SK4P-M12/M8-S-G-2M-BK-2-X-A-4:
| Number of cable wires | 4 |
| Length of cable | 2 m |
| Connector types | Female connector, M12 |
| Design | straight |
Schmersal M12 Connecting Cables V-SK4P-M12/M8-S-G-2M-BK-2-X-A-4 103003649 Technical Specifications
| Specification | Value |
|---|---|
| Number of cable wires | 4 |
| Tightening torque, maximum | 1 Nm |
| Length of cable | 2 m |
| Wire cross-section | 0.34 mm2 |
| Colour of the Cable mantle | Black |
| Connector types | Female connector, M12 |
| Design | straight |
| Connector coding | A |
| Connector latching | Screw locking |
| Material of the gland | Metal, CuZn, nickel-plated |
| Colour of the handle | Black |
| Connector type | Male connector, M12 |
| Connector side B - Design | straight |
| Connector side B - Connector coding | A |
| Connector side B - Connector latching | Screw locking |
| Connector side B - Material of the gland | Metal, CuZn, nickel-plated |
| Connector side B - Colour of the handle | Black |
| Thermal test current | 4 A |
| Connection technique - Cable diameter | 4.7 mm |
| Bending radius (fixed) | 5 x Γ-cable |
| Bending radius (repeated) | 10 x Γ-cable |
| Material of the Cable mantle | PUR |
| Material of the handle | Plastic, TPU |
| Material of the handle | Plastic, TPU |
| Degree of protection | IP65IP67IP69 |
| Ambient temperature (Connector) | -25 ... +85 Β°C |
| Ambient temperature (fixed) | -50 ... +90 Β°C |
| Ambient temperature (moved) | -25 ... +90 Β°C |
| Rated operating voltage | 250 VAC |
| Operating current | 4,000 mA |
| Gross weight | 80 g |
Please speak to our Technical Engineer for Schmersal M12 Connecting Cables V-SK4P-M12/M8-S-G-2M-BK-2-X-A-4 Item No: 103003649 at attractive prices. Technical Specs Summary of V-SK4P-M12/M8-S-G-2M-BK-2-X-A-4, 103003649 includes 4 individual cable wires with a wire cross-section of 0.34 mm2, ideal for efficient signal transmission. It comes with a sturdy Female connector, M12 in a straight design, equipped with Screw locking for secure connections. The cable has a total length of 2 m meters and supports a maximum tightening torque of 1 Nm, ensuring safe and firm installation. The outer mantle of the cable is Black, while the handle is Black, providing a clear color distinction for easy identification. The connector gland is made of Metal, CuZn, nickel-plated, offering excellent durability and corrosion resistance in industrial environments. The overall gross weight of the cable is 80 g making it lightweight yet robust. Match Your Needs with a Quote for your requirement of Schmersal M12 Connecting Cables V-SK4P-M12/M8-S-G-2M-BK-2-X-A-4. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
