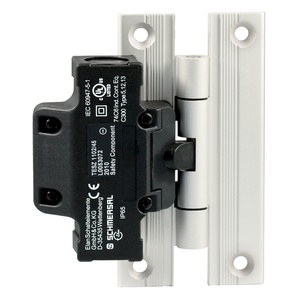

Schmersal TESZ10/45 Safety Switch
The Schmersal TESZ10/45 Safety Switch (Item No: 101030523) offers a Screw terminals M20 x 1.5 termination, IP65degree of protection, 250 VAC rated insulation voltage Ui, Opener (NC) switching element. Manufactured by Schmersal under the Schmersal Safety Switch. category, this model belongs to the Schmersal TE Series.
| Brand | Schmersal |
| Product Type | Safety Switch |
| Model Number | TESZ10/45 |
Schmersal TESZ10/45 Safety Switch – Technical Specifications
| Specification | Value |
|---|---|
| Material of the hinge | Aluminium |
| Gross weight | 500 g |
| Length x Width x Height | Suitable for mounting to profile systems: 45 mm |
| Standard | BG-GS-ET-15EN IEC 60947-5-1 |
| Housing material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Mounting hinge | Yes |
| Number of safety contacts | 1 |
| Standards | EN ISO 13849-1 |
| Mission time | 20 Year(s) |
| Mechanical life, minimum | 1,000,000 Operations |
| Positive break angle | 14 ° |
| Positive break force, minimum | 1 N |
| Termination | Screw terminals M20 x 1.5 |
| Cable section, minimum | 0.5 mm² |
| Cable section, maximum | 1.5 mm² |
| Length of sensor | 36 mm |
| Width of sensor | 111.5 mm |
| Height of sensor | 92 mm |
| Degree of protection | IP65 |
| Ambient temperature | -25 ... +65 °C |
| Rated insulation voltage Ui | 250 VAC |
| Rated impulse withstand voltage Uimp | 2.5 kV |
| Thermal test current | 2.5 A |
| Utilisation category AC-15 | 2 A |
| Switching element | Opener (NC) |
| Switching principle | Slow action |
| Maximum switching frequency | 120 /h |
| Material of the contacts, electrical | Silver |
Get A Quote for Schmersal Hinge safety switch TESZ10/45 Item No: 101030523 at the best price. Here are the brief Technical Specifications of TESZ10/45, 101030523 are Screw terminals M20 x 1.5 cable entry, supporting cable sections from 0.5 mm² to 1.5 mm². The sensor has a length of 36 mm, width of 111.5 mm, and height of 92 mm, designed to fit seamlessly into industrial hinge systems. With an IP65 degree of protection, it resists dust and low-pressure water, making it ideal for harsh environments. It operates in ambient temperatures from -25 ... +65 °C. Electrical ratings include a rated insulation voltage (Ui) of 250 VAC and a rated impulse withstand voltage (Uimp) of 2.5 kV. The switch supports a thermal test current of 2.5 A and a utilization category of AC-15 at 2 A. It uses an Opener (NC) switching element with an Slow action switching principle. It's Time to get a Quote for your requirement of Hinge safety switch TESZ10/45. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
