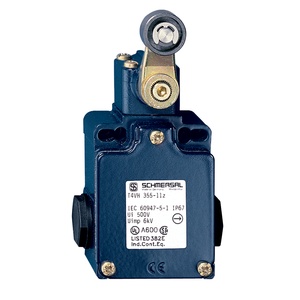

Schmersal T4VH 355-20ZH Position Switch
The Schmersal T4VH 355-20ZH Position Switch (Item No: ) offers a Light alloy die-casting housing material, 30,000,000 Operations mechanical life, minimum, IP65IP67 degree of protection, -30 ... +80 Β°C ambient temperature. Manufactured by Schmersal under the Schmersal Position Switch. category, this model belongs to the Schmersal TL Series.
| Brand | Schmersal |
| Product Type | Position switch |
| Model Number | T4VH 355-20ZH |
Schmersal Position Switch β Technical Specifications
| Specification | Value |
|---|---|
| Housing material | Light alloy die-casting |
| Housing coating material | painted |
| Gross weight | 318 g |
| Number of normally closed (NC) | - |
| open (NO) | - |
| Actuating element | Roller lever |
| Roller material | Plastic |
| Mechanical life, minimum | 30,000,000 Operations |
| Actuating angle, from left of switch axis | - |
| Actuating angle, from right of switch axis | - |
| Contact opening | - |
| Actuating speed, minimum | - |
| Actuating speed, maximum | 2.5 m/s |
| Termination | Screw terminals M20 x 1.5 |
| Cable section, minimum | 0.75 mmΒ² |
| Cable section, maximum | 2.5 mmΒ² |
| Wire cross-section | - |
| Length of sensor | 60.6 mm |
| Width of sensor | 66.7 mm |
| Height of sensor | 129.5 mm |
| Width of Castor | - |
| Diameter of Castor | - |
| Degree of protection | IP65IP67 |
| Ambient temperature | -30 ... +80 Β°C |
| Rated insulation voltage Ui | 250 VAC500 V |
| Thermal test current | 10 A |
| Switching element | Normally open contact (NO) |
| Switching principle | Slow action with staggered contacts |
| Material of the contacts, electrical | Silver |
| Required rated short-circuit current | 1,000 A |
| Maximum switching frequency | 5,000 /h |
| Mission time | 20 Year(s) |
Obtain a Quote for Schmersal Position Switch T4VH 355-20ZH part no: 101082458 at economical prices. Specifications Overview for T4VH 355-20ZH, 101082458 reveals the housing is made of Light alloy die-casting, ensuring strength and corrosion resistance. Featuring a Roller lever actuating element, this switch guarantees precise mechanical operation with a minimum mechanical life of 30,000,000 Operations operations. The termination is via Screw terminals M20 x 1.5, supporting a maximum cable section 2.5 mmΒ² for secure connections. The sensor measures 60.6 mm in length, 66.7 mm in width, and 129.5 mm in height, making it ideal for industrial use. It carries an IP65IP67 protection rating, safeguarding it against dust and water exposure. The switch operates in ambient temperatures ranging from -30 ... +80 Β°C, ensuring reliability in extreme conditions. It supports a rated insulation voltage (Ui) of 250 VAC500 V and features Normally open contact (NO) with an Slow action with staggered contacts switching principle. Take the First Step with a Quote for your requirement of Position Switch. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
