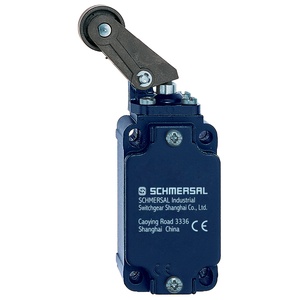

Schmersal T3K 335-11Z Position Switch
The Schmersal T3K 335-11Z Position Switch (Item No: ) offers a Light alloy die-casting housing material, 30,000,000 Operations mechanical life, minimum, IP65IP67 degree of protection, -30 ... +80 °C ambient temperature. Manufactured by Schmersal under the Schmersal Position Switch. category, this model belongs to the Schmersal TL Series.
| Brand | Schmersal |
| Product Type | Position switch |
| Model Number | T3K 335-11Z |
Schmersal Position Switch – Technical Specifications
| Specification | Value |
|---|---|
| Housing material | Light alloy die-casting |
| Housing coating material | painted |
| Gross weight | 200 g |
| Number of normally closed (NC) | - |
| open (NO) | - |
| Actuating element | Angle roller lever |
| Roller material | - |
| Mechanical life, minimum | 30,000,000 Operations |
| Actuating angle, from left of switch axis | - |
| Actuating angle, from right of switch axis | - |
| Contact opening | - |
| Actuating speed, minimum | - |
| Actuating speed, maximum | 0.5 m/s |
| Termination | Screw terminals M20 x 1.5 |
| Cable section, minimum | 0.75 mm² |
| Cable section, maximum | 2.5 mm² |
| Wire cross-section | - |
| Length of sensor | 38 mm |
| Width of sensor | 58.3 mm |
| Height of sensor | 121.5 mm |
| Width of Castor | - |
| Diameter of Castor | - |
| Degree of protection | IP65IP67 |
| Ambient temperature | -30 ... +80 °C |
| Thermal test current | 10 A |
| Material of the contacts, electrical | Silver |
| Required rated short-circuit current | 1,000 A |
| Maximum switching frequency | 5,000 /h |
| Mission time | 20 Year(s) |
Ask for the Pricing of Schmersal Position Switch T3K 335-11Z part no: 151084116 at unbeatable prices. Detailed Specifications of T3K 335-11Z, 151084116 feature the housing is made of Light alloy die-casting, ensuring strength and corrosion resistance. Featuring a Angle roller lever actuating element, this switch guarantees precise mechanical operation with a minimum mechanical life of 30,000,000 Operations operations. The termination is via Screw terminals M20 x 1.5, supporting a maximum cable section 2.5 mm² for secure connections. The sensor measures 38 mm in length, 58.3 mm in width, and 121.5 mm in height, making it ideal for industrial use. It carries an IP65IP67 protection rating, safeguarding it against dust and water exposure. The switch operates in ambient temperatures ranging from -30 ... +80 °C, ensuring reliability in extreme conditions. It supports a rated insulation voltage (Ui) of and features with an switching principle. Now's the Time to Secure a Quote for your requirement of Position Switch. We're committed to offering more favorable pricing and more responsive support than other Traders.
