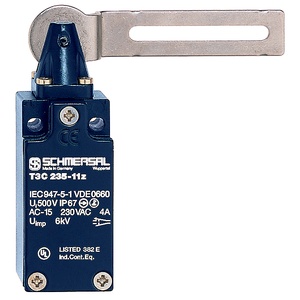

Schmersal T3C 235-01Z Safety Switches
The Schmersal T3C 235-01Z Safety Switches (Item No: 101103648) offers a 1,000,000 Operations mechanical life, minimum, 0.2 Nm positive break torque, IP67 degree of protection, 500 V rated insulation voltage Ui. Manufactured by Schmersal under the Schmersal Safety Switches. category, this model belongs to the Schmersal TC Series.
| Brand | Schmersal |
| Product Type | Safety Switch |
| Model Number | T3C 235-01Z |
Schmersal T3C 235-01Z Safety Switches – Technical Specifications
| Specification | Value |
|---|---|
| Housing material | Metal, zinc die-cast |
| Gross weight | 185 g |
| Number of safety contacts | 1 |
| B10DNormally-closed contact (NC) | 20,000,000 Operations |
| Actuating element | Swivel lever |
| Mechanical life, minimum | 1,000,000 Operations |
| Positive break angle | 12.5 ° |
| Positive break torque | 0.2 Nm |
| Opening angle | 180° |
| Termination | Screw terminals M20 x 1.5 |
| Length of sensor | 30 mm |
| Width of sensor | 93 mm |
| Height of sensor | 94.5 mm |
| Height of the actuator | 78 mm |
| Degree of protection | IP67 |
| Ambient temperature | -30 ... +80 °C |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 6 kV |
| Thermal test current | 10 A |
| Utilisation category AC-15 | 4 A |
| Utilisation category DC-13 | 1 A |
| Switching element | Opener (NC) |
| Switching principle | Slow action |
| Maximum switching frequency | 5,000 /h |
| Material of the contacts, electrical | Silver |
Mail Us for your needs in Schmersal Flap safety switches T3C 235-01Z Item No: 101103648 with budget-friendly prices. The Main Technical Parameters of T3C 235-01Z, 101103648 include housing is made from Metal, zinc die-cast properties, making it ideal for demanding industrial environments. The switch features a Swivel lever as the actuating element and supports, ensuring long-term reliability. It activates with a positive break angle of 12.5 ° and a positive break torque of 0.2 Nm, with a full opening angle of 180°. Termination is via a Screw terminals M20 x 1.5, enabling quick and secure installation. The sensor has a length of 30 mm and an actuator height of 78 mm. It holds a IP67 protection rating, offering excellent resistance to dust and water. With a rated insulation voltage of 500 V, it includes Opener (NC) with an Slow action switching principle and a maximum switching frequency of 5,000 /h. Contacts are made of Silver. Customize Your Experience with a Quote for your requirement of Flap safety switches T3C 235-01Z. Experience the difference with our competitive pricing and superior support over other Suppliers.
