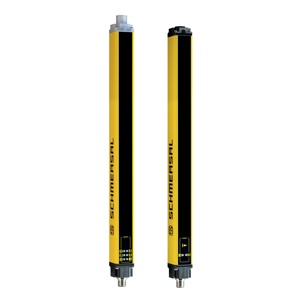

SLC445-ER-1450-14-01: 103005402 - Schmersal 12 Pole Plug Connector Curtain
Technical specifications of Schmersal 12 Pole Plug Connector Curtain SLC445-ER-1450-14-01 103005402:
| Spec | Value |
|---|---|
| Number of Beams | 144 |
| Height of the protection field | 1,450 mm |
| Terminal Connector Recipient | Connector plug M12, 12-pole |
| Terminal Connector Trasmitter | Connector plug M12, 4-pole |
Schmersal 12 Pole Plug Connector Curtain SLC445-ER-1450-14-01, 103005402 Technical Specifications:
| Specification | Value |
|---|---|
| Housing material | Aluminium |
| Reaction time, maximum | 20 ms |
| Gross weight | 2,480 g |
| Number of beams | 144 |
| PFH value | 5.14 x 10⁻⁹ /h |
| Detection ability for test bodies at v = 1.6 m/s | 14 mm |
| Height of the protection field | 1,450 mm |
| Range, protection field, minimum | 0.3 m |
| Range, protection field, maximum | 7 m |
| Wave length of the laserdiode | 880 nm |
| Termination | Connector |
| Terminal connector, Recipient | Connector plug M12, 12-pole |
| Terminal, Connector, Transmitter | Connector plug M12, 4-pole |
| Length of the connectable cable, maximum | 100 m |
| Length of sensor | 33 mm |
| Width of sensor | 27.8 mm |
| Height of the Sensor (Receiver) | 1,541 mm |
| Height of the Sensor (Transmitter) | 1,531 mm |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +50 °C |
| Storage and transport temperature | -25 ... +70 °C |
| Protection class | III |
| Switching voltage OSSD, HIGH signal | 24 V |
| Electrical power consumption of the receiver, maximum | 10 W |
| Electrical power consumption of the transmitter, maximum | 5 W |
| Output current, (fail-safe output), maximum | 0.25 A |
| Design of control elements | p-type |
Obtain a Quote for Schmersal 12 Pole Plug Connector Curtain
SLC445-ER-1450-14-01 part no: 103005402 at economical prices. Specifications Overview for SLC445-ER-1450-14-01, 103005402 reveals 144 beams, providing a robust protection field height of 1,450 mm ensuring reliable safety coverage. Termination is achieved via a Connector plug M12, 12-pole available in Connector plug M12, 4-pole configurations, providing flexible connectivity options for diverse applications. The sensors operate at a switching voltage of 24 V with an output current of up to 0.25 A on the fail-safe output, ensuring dependable performance in critical environments. The sensors are rated with a degree of protection of IP67. Take the First Step with a Quote for your requirement of Schmersal 12 Pole Plug Connector Curtain
