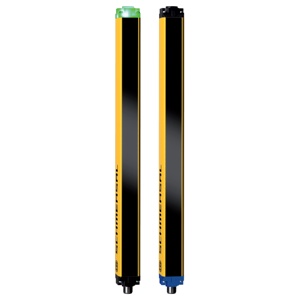

SLC240COM-ER-0410-30: 103016159 - Schmersal 20 Beam Light Curtain
Technical Specifications of Schmersal 20 Beam Light Curtain SLC240COM-ER-0410-30 103016159:
Spec | Value |
---|---|
Number of Beams | 20 |
Height of the protection field | 410 mm |
Terminal, Connector, Receipient | Connector plug M12, 5-pole |
Terminal, Connector, Transmitter | Connector plug M12, 4-pole |
Schmersal 20 Beam Light Curtain SLC240COM-ER-0410-30, 103016159 Technical Specifications:
Specification | Value |
---|---|
Housing material | Aluminium |
Reaction time, maximum | 10 ms |
Number of beams | 20 |
PFH value | 8.05 x 10⁻⁹ /h |
Detection ability for test bodies at v = 1.6 m/s | 30 mm |
Height of the protection field | 410 mm |
Range, protection field, minimum | 0.3 m |
Range, protection field, maximum | 12 m |
Wave length of the laserdiode | 880 nm |
Termination | Connector |
Terminal connector, Recipient | Connector plug M12, 5-pole |
Terminal, Connector, Transmitter | Connector plug M12, 4-pole |
Length of the connectable cable, maximum | 100 m |
Length of sensor | 33 mm |
Width of sensor | 27.8 mm |
Height of sensor | 451 mm |
Degree of protection | IP67 |
Ambient temperature | -10 ... +50 °C |
Storage and transport temperature | -25 ... +70 °C |
Protection class | III |
Switching voltage OSSD, HIGH signal | 24 V |
Electrical power consumption of the receiver, maximum | 10 W |
Electrical power consumption of the transmitter, maximum | 5 W |
Output current, (fail-safe output), maximum | 0.25 A |
Design of control elements | p-type |
Gross weight | 840 g |
Mail Us for your needs in Schmersal 20 Beam Light Curtain SLC240COM-ER-0410-30 part no: 103016159 with budget-friendly prices. The Main Technical Parameters of SLC240COM-ER-0410-30, 103016159 inludce Aluminium housing, designed to meet the toughest industrial requirements. These sensors feature 20 beams, creating a protection field height of 410 mm ensuring optimal safety coverage. The termination is facilitated through Connector plug M12, 5-pole and Connector plug M12, 4-pole configurations, providing secure and versatile connectivity options. The protection field operates effectively within a range of 0.3 m to 12 m, making it suitable for various applications. Operating at a switching voltage of 24 V these sensors deliver reliable and consistent performance. Rated with an IP67 degree of protection. Customize Your Experience with a Quote for your requirement of Schmersal 20 Beam Light Curtain. Experience the difference with our competitive pricing and superior support over other Suppliers.
