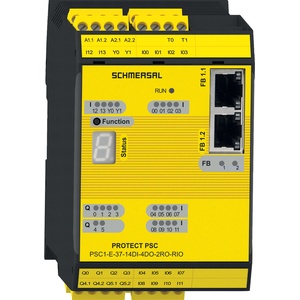

Schmersal PSC1-E-37-14DI-4DO-2RO-RIO Safety Controllers
The Schmersal PSC1-E-37-14DI-4DO-2RO-RIO Safety Controllers (Item No: 103056286) offers a 1.26 x 10⁻⁸ /h PFH value, 2.5 mm² cable section, maximum, IP20 degree of protection, 24 VDC rated operating voltage. Manufactured by Schmersal under the Schmersal Safety Controllers. category, this model belongs to the Schmersal PSC1 Series.
| Brand | Schmersal |
| Product Type | Safety controller |
| Model Number | PSC1-E-37-14DI-4DO-2RO-RIO |
Schmersal PSC1-E-37-14DI-4DO-2RO-RIO Safety Controllers – Technical Specifications
| Specification | Value |
|---|---|
| Gross weight | 533 g |
| Master-Slave-Communication (decentralized) | Yes |
| Number of pulse outputs (test pulse output) | 2 |
| Number of relay outputs (1-channel) | 14 |
| Number of digital fail-safe inputs | 14 |
| Number of fail-safe digital outputs | 4 |
| Number of signalling outputs | 2 |
| Performance Level, up to | e |
| Category | 4 |
| PFH value | 1.26 x 10⁻⁸ /h |
| Safety Integrity Level (SIL), suitable for applications in | 3 |
| Mission time | 20 Year(s) |
| Mounting | can be clipped into standard rail |
| Cable section, minimum | 0.2 mm² |
| Cable section, maximum | 2.5 mm² |
| Wire cross-section, minimum | 24 AWG |
| Wire cross-section, maximum | 12 AWG |
| Wire cross-section | 24 ... 12 AWG |
| Terminal (mechanical) | Removable screw terminals |
| Width | 67.5 mm |
| Height | 100 mm |
| Depth | 115 mm |
| Degree of protection | IP20 |
| Storage and transport temperature | -25 ... +70 °C |
| Relative humidity, minimum | 5 % |
| Relative humidity, maximum | 85 % |
| Note (Relative humidity) | non-condensing |
| Permissible installation altitude above sea level, maximum | 2,000 m |
| Overvoltage category | III |
| Degree of pollution | 2 |
| Operating voltage | 24 VDC -15 % / +20 % |
| Rated operating voltage | 24 VDC |
| Designation, Communication interface | RJ45 |
| Rated operating current (safety outputs) | 2,000 mA |
| Design of control elements | short-circuit proof, p-type (Q2 und Q3) |
| Voltage, Utilisation category AC-15 | 230 VAC |
| Current, Utilisation category AC-15 | 2 A |
| Voltage, Utilisation category DC-13 | 24 VDC |
| Current, Utilisation category DC-13 | 2 A |
| Electromagnetic compatibility | DIN EN 62061DIN EN 61800-3 |
| Interfering radiation | DIN EN 61000-6-4 |
| EMC rating | DIN EN 61000-6-7DIN EN 61326-3DIN EN 61000-6-2 |
| Scope of delivery | Backplane bus connectorConnector terminals |
IndMALL Automation Dealing offers Schamersal Safety Controllers PSC1-E-37-14DI-4DO-2RO-RIO part no: 103056286 at unbeatable prices. The Main Technical Parameters of PSC1-E-37-14DI-4DO-2RO-RIO, 103056286 feature 1.26 x 10⁻⁸ /h, ensuring long operational life. The unit features a standard can be clipped into standard rail, allowing for quick and secure installation. It supports a minimum cable section of 0.2 mm² and a maximum of 2.5 mm², accommodating various wiring needs. The wire cross-section ranges from 24 AWG to 12 AWG, ensuring compatibility with industrial setups. Removable screw terminals provide secure and easy termination. The relay measures 67.5 mm in width, 100 mm in height, and 115 mm in depth, offering a compact design for space efficiency. With an IP20 protection rating, it is suited for controlled environments. It operates within a storage and transport temperature range of -25 ... +70 °C and a relative humidity range of 5 % to 85 %. Take the First Step with a Quote for your requirement of Safety Controllers . Choose us for unparalleled pricing and support over other Dealers & Distributors.
