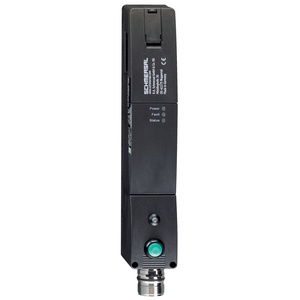

Schmersal MS-AZM 200 D ST3-T-1P2P2P-2568 Rotating Spindle Limit Switch
The Schmersal MS-AZM 200 D ST3-T-1P2P2P-2568 Rotating spindle limit switch (Item No: 103006851) offers a 1,000,000 Operations mechanical life, minimum, Connector M23, 12-poletermination, IP67 degree of protection, 32 VDC rated insulation voltage Ui. Manufactured by Schmersal under the Schmersal Rotating spindle limit switch. category, this model belongs to the Schmersal MS Series.
| Brand | Schmersal |
| Product Type | Limit Switch |
| Model Number | MS-AZM 200 D ST3-T-1P2P2P-2568 |
Schmersal MS-AZM 200 D ST3-T-1P2P2P-2568 Rotating Spindle Limit Switch – Technical Specifications
| Specification | Value |
|---|---|
| Working principle | inductive |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Gross weight | 720 g |
| Mechanical life, minimum | 1,000,000 Operations |
| Termination | Connector M23, 12-pole |
| Cable section, minimum | 0.25 mm² |
| Cable section, maximum | 1.5 mm² |
| Wire cross-section | 23 ... 15 AWG |
| Length of sensor | 50 mm |
| Width of sensor | 40 mm |
| Height of sensor | 220 mm |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +60 °C |
| Rated insulation voltage Ui | 32 VDC |
| Rated impulse withstand voltage Uimp | 0.8 kV |
Ask for the Pricing of Schmersal Rotating Spindle Limit Switch MS-AZM 200 D ST3-T-1P2P2P-2568 Item No: 103006851 at unbeatable prices. Detailed Specifications of MS-AZM 200 D ST3-T-1P2P2P-2568, 103006851 feature inductive working principle and features Connector M23, 12-pole cable entry, supporting wire cross-sections up to 23 ... 15 AWG for secure electrical connections. With a compact sensor length of 50 mm, width of 40 mm, and height of 220 mm, it fits seamlessly into control systems. The unit boasts a rated insulation voltage (Ui) of 32 VDC and an impressively rated impulse withstand voltage (Uimp) of 0.8 kV, ensuring operational safety and electrical durability. Designed for harsh industrial settings, it carries an IP67 protection rating and functions efficiently across a wide ambient temperature range of -25 ... +60 °C. With a solid gross weight of 720 g, the switch reflects its heavy-duty build quality. Now's the Time to Secure a Quote for your requirement of Rotating Spindle Limit Switch MS-AZM 200 D ST3-T-1P2P2P-2568. We're committed to offering more favorable pricing and more responsive support than other Traders.
