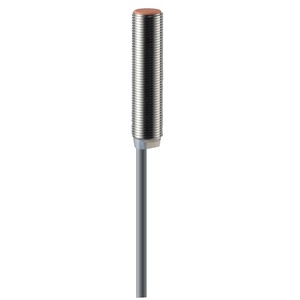

Schmersal IFL 2-12-10 Photo-electric Proximity Switches
The Schmersal IFL 2-12-10 Photoelectric Proximity Switches (Item No: 101141514) offers a Cylinder, thread housing construction form, Cable H03VV-Ftermination, 15 ... 250 VAC rated operating voltage, Normally open contact (NO) switching element. Manufactured by Schmersal under the Schmersal Photoelectric Proximity Switches. category, this model belongs to the Schmersal IF Series.
| Brand | Schmersal |
| Product Type | Photo-electric Proximity Switch |
| Model Number | IFL 2-12-10 |
Schmersal IFL 2-12-10 Photo-electric Proximity Switches β Technical Specifications
| Specification | Value |
|---|---|
| Housing construction form | Cylinder, thread |
| Housing material | Brass |
| Active area | Plastic |
| Material of the nuts | Nickel plated brass |
| Gross weight | 100 g |
| Integral system diagnostics, status | Yes |
| Number of cable wires | 2 |
| Tightening torque of nuts, maximum | 15 Nm |
| Termination | Cable H03VV-F |
| Wire cross-section | 0.5 mm2 |
| ISO thread of the sensor | M12 |
| width across flats | 17 BK |
| Length of sensor | 71 mm |
| Degree of protection | IP67 |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated supply frequency, minimum | 45 Hz |
| Rated supply frequency, maximum | 65 Hz |
| Type of voltage range | AC |
| Operating current, minimum | 8 mA |
| Rated operating voltage | 15 ... 250 VAC |
| Operating current | 200 mA |
| Switching element | Normally open contact (NO) |
| Protection circuit integrated | inductive interference protection |
| Switching frequency, approx. | 10 Hz |
| Voltage drop Ud, maximum | 3.5 V |
| Current at Voltage drop Ud | 0.2 A |
| Design of control elements | Two-wire |
| Note (Integral System Diagnostics, status ) | yellow LED |
Please speak to our Technical Engineer for Schmersal Inductive Proximity Switches IFL 2-12-10 part no: 101141514 at attractive prices. Technical Specs Summary of IFL 2-12-10, 101141514 includes Cylinder, thread Brass housing, ensuring lightweight durability for industrial applications. Designed for versatile electrical compatibility, it operates at a rated voltage of 15 ... 250 VAC with a maximum operating current of 200 mA. The switching element supports both Normally open contact (NO), allowing flexible configurations. With an approximate switching frequency of 10 Hz, it ensures reliable performance in automation setups. The maximum voltage drop (Ud) is 3.5 V, with a current rating of 0.2 A at Ud, providing efficient electrical conductivity. The control element features an Two-wire design, ensuring simplified wiring for seamless integration. Termination is achieved via a Cable H03VV-F, ensuring secure and stable electrical contacts. The unit is IP67 rated, offering protection against dust and low-pressure water jets. Match Your Needs with a Quote for your requirement of Inductive Proximity Switches. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
