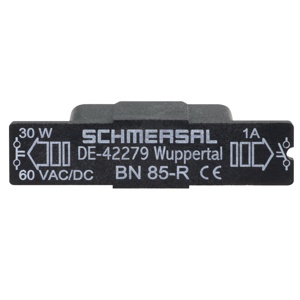

BN 85-R-1824-2 3,0M: 101095308 - Schmersal IP40 Magnetic Reed Switch
Technical Specifications of IP40 Magnetic Reed Switch BN 85-R-1824-2 3,0M 101095308:
Spec | Value |
---|---|
Working Principle | Magnetic drive |
Switching Distance Sn | 2 mm … 40 mm |
Termination | Cable |
Degree of Protection | IP40 |
Schmersal IP40 Magnetic Reed Switch, BN 85-R-1824-2 3,0M, 101095308 Technical Specifications:
Specification | Value |
---|---|
Working principle | Magnetic drive |
Housing construction form | Block |
Housing material | Glass-fibre, reinforced thermoplastic |
Active area | lateral |
Actuating panels | front side |
Mounting | Mounting to C profile rails and sheathed cable with screws |
Switching distance Sn | 2 mm … 40 mm |
Length of cable | 3 m |
Termination | Cable |
Wire cross-section | 18 AWG |
Material of the Cable mantle | LiY |
Length of sensor | 16.5 mm |
Width of sensor | 40 mm |
Height of sensor | 35 mm |
Degree of protection | IP40 |
Ambient temperature | 75 °C |
Restistance to shock | 60 g, on sine wave oscillation |
Switching voltage, maximum | 60 VDC |
Switching current, maximum | 1 A |
Switching capacity, maximum | 30 VA |
Switching element | bistable contact |
Bounce duration, maximum | 0.2 ms |
Design of control elements | Reed contacts |
Gross weight | 88 g |
Ask for the Pricing of BN 85-R-1824-2 3,0M: 101095308 - Schmersal IP40 Magnetic Reed Switch part no: at unbeatable prices. Detailed Specifications of , feature Block construction form, designed to meet the needs of industrial applications. The housing is made from Glass-fibre, reinforced thermoplastic providing excellent durability and resistance to wear. The sensor utilizes a for operation and is designed for easy 2 mm … 40 mm. It features a switching distance ranging from 3 m ensuring reliable performance in various conditions. The sensor is equipped with a Cable and 18 AWG for flexible installation. With a height of IP40 it is compact yet effective. The sensor supports a maximum switching voltage of 60 VDC a switching current of 1 A and a switching capacity of 30 VA making it suitable for a wide range of applications. The bistable contact ensures stable operation, and with an 75 °C rating, the sensor offers adequate protection against dust. The total weight is88 g. Now's the Time to Secure a Quote for your requirement of BN 85-R-1824-2 3,0M: 101095308 - Schmersal IP40 Magnetic Reed Switch. We're committed to offering more favorable pricing and more responsive support than other Traders.
