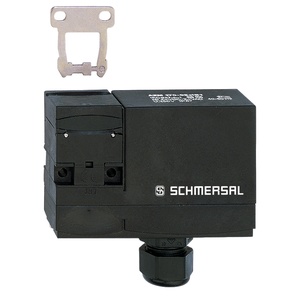

Schmersal AZM 170 BZ ST-AS P Solenoid Interlocks
The Schmersal AZM 170 BZ ST-AS P Solenoid Interlocks (Item No: 101210931) offers a electromechanical working principle, Connector plug M12, 4-pole, (A-coding)termination, IP67 degree of protection, 32 VDC rated insulation voltage Ui. Manufactured by Schmersal under the Schmersal Solenoid Interlocks. category, this model belongs to the Schmersal AZM Series.
| Brand | Schmersal |
| Product Type | Solenoid Interlocks |
| Model Number | AZM 170 BZ ST-AS P |
Schmersal AZM 170 BZ ST-AS P Solenoid Interlocks β Technical Specifications
| Specification | Value |
|---|---|
| Coding level according to EN ISO 14119 | - |
| Working principle | electromechanical |
| Housing material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Gross weight | 288 g |
| Holding force FZhin accordance with EN ISO 14119 | - |
| Latching force | 5 N |
| Actuating speed, maximum | 2 m/s |
| Termination | Connector plug M12, 4-pole, (A-coding) |
| Width of sensor | 90 mm |
| Height of sensor | 75.5 mm |
| Degree of protection | IP67 |
| Rated insulation voltage Ui | 32 VDC |
| Rated impulse withstand voltage Uimp | 0.8 kV |
| Thermal test current | - |
| Rated control voltage | - |
| Required rated short-circuit current | - |
| Electrical power consumption, maximum | - |
| Switching principle | - |
| Maximum switching frequency | - |
| Material of the contacts, electrical | - |
| Magnet switch-on time | - |
| Test pulse duration, maximum | - |
| Test pulse interval, minimum | - |
| Voltage, Utilisation category AC-15 | - |
| Voltage, Utilisation category DC-13 | - |
| Switching element | - |
| Power to unlock | Yes |
| Cable entry | - |
Ask for the Pricing of Schmersal Solenoid interlocks AZM 170 BZ ST-AS P part no: 101210931 at unbeatable prices. Detailed Specifications of AZM 170 BZ ST-AS P, 101210931 feature electromechanical safety switch, designed for durability and reliability in industrial environments. The housing is made of Plastic, glass-fibre reinforced thermoplastic, self-extinguishing, ensuring a lightweight yet robust construction with a gross weight of 288 g. It features an Connector plug M12, 4-pole, (A-coding) system, facilitating easy installation. With dimensions of in length, 90 mm in width, and 75.5 mm in height, it is compact yet highly efficient. The IP67 protection rating guarantees resistance against dust, water jets, and temporary immersion, making it suitable for demanding applications. The switch operates at a rated insulation voltage (Ui) of 32 VDC, ensuring electrical safety. Additionally, it has a rated impulse withstand voltage (Uimp) of 0.8 kV, providing high surge protection. Now's the Time to Secure a Quote for your requirement of Solenoid interlocks. We're committed to offering more favorable pricing and more responsive support than other Traders.
