AZM 161SK-12/03RKA-024: 101195892 - Schmersal Flat Head Screws Solenoid Interlocks

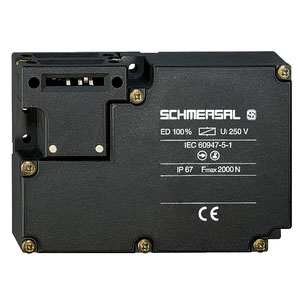

Schmersal AZM 161SK-12/03RKA-024 101195892
Datasheet

Technical Specifications of Schmersal Flat Head Screws Solenoid Interlocks AZM 161SK-12/03RKA-024 101195892:

SpecValue
Working Principleelectromechanical
MountingScrews
Type of the Fixing Screws3x M5
TerminationScrew terminals

Schmersal Flat Head Screws Solenoid Interlocks AZM 161SK-12/03RKA-024, 101195892 Technical Specifications:

SpecificationValue
Working principleelectromechanical
Housing materialPlastic, glass-fibre reinforced thermoplastic, self-extinguishing
Gross weight465 g
Number of safety contacts5
B10D Normally-open contact (NO)1,000,000 Operations
Holding force Fmax, maximum2,600 N
Latching force30 N
Positive break travel10 mm
Positive break force, minimum30 N
Actuating speed, maximum2 m/s
MountingScrews
Type of the fixing screws3x M5
Type of the screw headFlat head screw
Cable entry4 x M16 x 1,5
TerminationScrew terminals
Cable section, minimum0.25 mm²
Cable section, maximum1.5 mm²
Allowed type of cablesolid single-wire solid multi-wire flexible
Length of sensor30 mm
Width of sensor130 mm
Height of sensor90 mm
Degree of protectionIP67
Ambient temperature-30 ... +60 °C
Storage and transport temperature-30 ... +85 °C
Protection classII
Rated insulation voltage Ui250 VAC
Rated impulse withstand voltage Uimp4 kV
Thermal test current6 A
Rated control voltage24 VAC/DC
Required rated short-circuit current1,000 A
Electrical power consumption, maximum10 W
Switching elementNO contact, NC contact
Switching principleslow action, positive break NC contact
Maximum switching frequency1,000 /h
Material of the contacts, electricalSilver
Magnet switch-on time100 %
Test pulse duration, maximum5 ms
Test pulse interval, minimum50 ms
Ask for the Pricing of Schmersal Flat Head Screws Solenoid Interlocks AZM 161SK-12/03RKA-024 part no: 101195892 at unbeatable prices. Detailed Specifications of AZM 161SK-12/03RKA-024, 101195892 are electromechanical Working Principle, ensuring precise functionality. The Housing is made from Plastic, glass-fibre reinforced thermoplastic, self-extinguishing and features self-extinguishing properties for added safety. The Mounting is secured with Screws providing stability during operation. Cable entry is managed through 4 x M16 x 1,5 ports, while Termination is facilitated by Screw terminals ensuring robust connections. The sensor is compact, with a Length and a Height of 90 mm making it ideal for space-constrained installations. It operates on a Rated control voltage of 24 VAC/DC and utilizes an slow action, positive break NC contact Switching Principle for reliable performance. It's Time to get a Quote for your requirement of Schmersal Flat Head Screws Solenoid Interlocks. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
