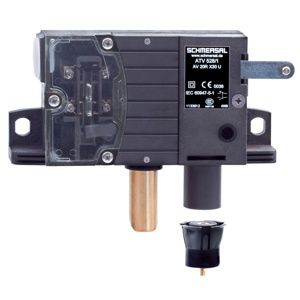

AV20LHX40U-GB215: 103016454 - Schmersal Safety Switch For Industrial Use
Technical Specifications of Schmersal Safety Switch For Industrial Use AV20LHX40U-GB215 103016454:
| Spec | Value |
|---|---|
| Number of safety contacts | 1 |
| Mounting | rear-side mounting holes |
| Switching element | NC contact, NO contact |
| Switching principle | Slow action |
Schmersal Safety Switch For Industrial Use AV20LHX40U-GB215, 103016454 Technical Specifications:
| Specification | Value |
|---|---|
| Housing material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Material of the latching bolt | Brass |
| Number of auxiliary contacts | 1 |
| Number of door leafs | 1 |
| Number of safety contacts | 1 |
| Actuating element | Roller lever H65 |
| Orientation / Alignment | left-hand model |
| Mounting | rear-side mounting holes |
| Permanent magnet | Ceramic oxide magnets with high coercive field strength |
| Cable entry | without cable gland |
| Width | 165 mm |
| Height | 80 mm |
| Depth | 37 mm |
| Diameter of the latching bolt | 18 mm |
| X-dimension of the latching bolt | 40 mm |
| Degree of protection | IP54 |
| Ambient temperature | -15 ... +70 °C |
| Rated insulation voltage Ui | 500 VAC |
| Rated impulse withstand voltage Uimp | 6 kV |
| Thermal test current | 10 A |
| Switching element | NC contact, NO contact |
| Switching principle | Slow action |
| Material of the contacts, electrical | Silver |
| Gross weight | 769 g |
Send Your Inquiry for Schmersal Safety Switch For Industrial Use AV20LHX40U-GB215 part no: 103016454 with cost-effective solutions. Essential Technical Specs of AV20LHX40U-GB215, 103016454 are housing made of Plastic, glass-fibre reinforced thermoplastic, self-extinguishing properties for added safety. The latching bolt is crafted from durable Brass with 1 safety contact integrated for reliable operation. The actuating element is a Roller lever H65 aligned for left-hand model and easily mounted using rear-side mounting holes. The sensor incorporates Ceramic oxide magnets with high coercive field strength enhancing its functionality. Rated at IP54 it is protected against dust and splashes, operating efficiently in ambient temperatures ranging from -15 ... +70 °C. The sensor supports a rated insulation voltage of 500 VAC and a rated impulse withstand voltage of 6 kV offering strong electrical resilience. The switching element utilizes NC contact, NO contact with a Slow action principle, and the electrical contacts are made of high-quality Silver for optimal conductivity. Capture the Best Deal with a Quote for your requirement of Schmersal Safety Switch For Industrial Use. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
