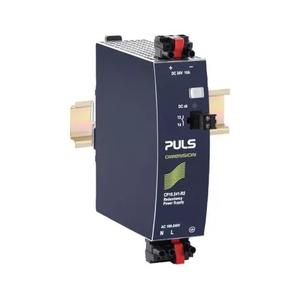

Home Brands Puls Power Supply CP10.241-R2 Puls CP10.241-R2 Power Supply The Puls CP10.241-R2 Power Supply offers 24 Vdc, DIN rail Mounting Method, Plug connector Connection Method, 10 A at 24 V output current. Manufactured by Puls under the Puls Power Supply category, this model belongs to the 3-phase system
Brand Puls Product Type Power Supply Model Number CP10.241-R2
Puls CP10.241-R2 Power Supply – Technical Specifications Specification Value AC Input voltage AC 100 - 240 V (-15 %/+10 %) DC Input voltage DC 110 V - 150 V (± 20 %) Harmonic correction active Power factor 0.97 Input inrush current limitation active Input inrush current 6 A / 9 A External input fuse recommendation B-6 A / C-6 A Nominal voltage 24 Vdc Adjustment range 24 V Output current range 10 A Output current 10 A at 24 V Output power 240 W Derating 6 W/°C for >+60 °C Ripple and noise voltage max. 50 mVpp Dimensions (WxHxD) 39 mm x 124 mm x 117 mm Weight per unit (excl. packaging) 600 g Mounting method DIN rail Operating temp. range -25 °C to 70 °C Connection method Plug connector Efficiency, typ. 94.7 % Power losses, typ. 13.4 W Housing material -
