Phoenix REL-MR- 24DC/1IC Single Relay

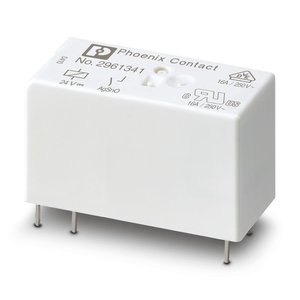

The Phoenix REL-MR- 24DC/1IC Single Relay (Part No: 2961341 ) offers a 24 V DCnominal input voltage UN, 19.2 V DC ... 54 V DC input voltage range, 250 V AC/DC switching voltage, Plug / solder connection method. Manufactured by Phoenix under the Phoenix Single Relay category, this model belongs to the Phoenix REL Series.
| Brand | Phoenix Contact |
| Product Type | Single Relay |
| Model Number | REL-MR- 24DC/1IC |
Phoenix REL-MR- 24DC/1IC Single Relay – Technical Specifications
| Specification | Value |
|---|---|
| Product type | Single relay |
| Mechanical service life | 3x 107 cycles |
| Insulation | Safe isolation, reinforced insulation |
| Overvoltage category | III |
| Pollution degree | 3 |
| Maximum power dissipation for nominal condition | 0.41 W |
| Test voltage (Winding/contact) | 5 kV AC (50 Hz, 1 min., winding/contact) |
| Rated insulation voltage | 250 V AC |
| Rated surge voltage | 6 kV |
| Nominal input voltage UN | 24 V DC |
| Input voltage range | 19.2 V DC ... 54 V DC |
| Drive and function | monostable |
| Drive (polarity) | non-polarized |
| Typical input current at UN | 17 mA |
| Typical response time | 8 ms |
| Typical release time | 3 ms |
| Contact switching type | 1 N/O contact |
| Type of switch contact | Single contact |
| Contact material | AgSnO |
| Maximum switching voltage | 250 V AC/DC |
| Minimum switching voltage | 12 V (100 mA) |
| Limiting continuous current | 16 A |
| Maximum inrush current | 80 A (20 ms) |
| Min. switching current | 100 mA (at 12 V DC) |
| Interrupting rating (ohmic load) max. | 384 W (at 24 V DC) |
| Connection method | Plug / solder connection |
| Width | 12.7 mm |
| Height | 29 mm |
| Depth | 15.7 mm |
| Degree of protection | RT II |
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Standards/regulations | EN 50178 |
| Mounting type | Plug-in mounting |
| Mounting position | any |
| Coil resistance | 1440 Ω ±10 % (20 °C) |
| Switching capacity | 2 A (at 24 V, DC13) |
| Motor load according to UL 508 | 1/2 HP, 120 V AC (N/O contact) |
The Phoenix Contact REL-MR-24DC/1IC (Part No: 2961341) is a high-performance Single Relay that offers excellent reliability and electrical endurance for automation and control applications. It operates at a nominal input voltage of 24 V DC and accepts a broad input range from 19.2 V DC to 54 V DC. With a typical input current of 17 mA and a response time of 3 ms, this monostable relay enables fast signal switching while maintaining low power consumption.
Built with AgSnO contact material and featuring a single normally open contact, the relay supports up to 250 V AC/DC switching voltage and a limiting continuous current of 16 A. It is specifically designed to handle heavy-duty loads with a maximum inrush current of 80 A (20 ms), making it ideal for circuits where high startup current is expected. The interrupting rating of 384 W at 24 V DC reflects its ability to switch significant resistive loads safely and consistently.
Installation is simplified through its plug/solder connection interface, and the compact 12.7 mm width allows it to fit easily into space-restricted control panels. With a mechanical service life of 30 million cycles and reinforced insulation for safe operation, the relay is compliant with EN 50178 standards and rated for continuous operation between -40 °C to +85 °C. For more industrial-grade relay solutions, browse the Phoenix Relay series or visit the Phoenix Contact brand page.
For junior engineers and students, the REL-MR-24DC/1IC offers a clear and practical understanding of how high-inrush current relays function in real-world industrial automation systems. It demonstrates the importance of selecting the right relay for high-startup or inductive load protection, making it a valuable component in both educational labs and active manufacturing lines.
