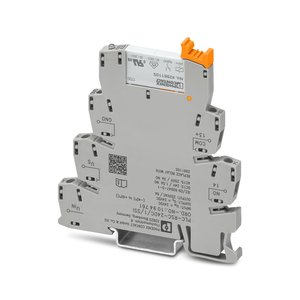

PLC-RSC-24DC/1/SSI: 1094761 - Phoenix 24V DC Input Voltage Relay
Technical Specifications of Phoenix 24V DC Input Voltage Relay PLC-RSC-24DC/1/SSI 1094761:
Spec | Value |
---|---|
Product type | Relay Module |
Nominal input voltage UN | 24 V DC |
Connection method | Screw connection |
Mounting type | DIN rail mounting |
Phoenix 24V DC Input Voltage Relay PLC-RSC-24DC/1/SSI, 1094761 Technical Specifications:
Specification | Value |
---|---|
Product type | Relay Module |
Product family | PLC-INTERFACE |
Application | weak signal sources |
Mechanical service life | 2x 107 cycles |
Insulation | - |
Overvoltage category | III |
Pollution degree | - |
Maximum power dissipation for nominal condition | 0.22 W |
Test voltage (Winding/contact) | - |
Test voltage (Changeover contact/changeover contact) | - |
Rated surge voltage | - |
Nominal input voltage UN | 24 V DC |
Input voltage range | 19.2 V DC ... 28.8 V DC (20 °C) |
Drive and function | monostable |
Drive (polarity) | polarized |
Typical input current at UN | 1 mA |
Typical response time | 5 ms |
Typical release time | 7 ms |
Protective circuit | Reverse polarity protection |
Operating voltage display | Yellow LED |
Contact switching type | 1 N/O contact |
Type of switch contact | Single contact |
Contact material | AgSnO |
Maximum switching voltage | 250 V AC/DC |
Limiting continuous current | 6 A |
Maximum inrush current | 10 A (4 s) |
Min. switching current | 10 mA |
Interrupting rating (ohmic load) max. | 140 W (at 24 V DC) |
Switching capacity | - |
Connection method | Screw connection |
Stripping length | 8 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
Conductor cross section AWG | 26 ... 14 |
Tightening torque | 0.45 Nm ... 0.55 Nm (Usually these terminal blocks must be supported during conductor connection (held by one hand, supported on the housing)) |
Width | 6.2 mm |
Height | 80 mm |
depth | 94 mm |
Color | gray (RAL 7042) |
Flammability rating according to UL 94 | - |
Degree of protection (Relay) | - |
Degree of protection (Relay base) | IP20 (Relay base) |
Ambient temperature (operation) | -25 °C ... 60 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Temperature | D |
Humidity | A |
Vibration | B/C |
EMC | B |
Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Low Voltage Directive | Conformance with Low Voltage Directive |
Electromagnetic compatibility | Conformance with EMC directive |
Standards/regulations | IEC 60947-5-1 |
Mounting Type | DIN rail mounting |
Mounting position | any |
Contact Connection type | Power contact |
Output fuse | 4 A gL/gG NEOZED |
Degree of protection (Installation location) | ≥ IP54 (Installation location) |
