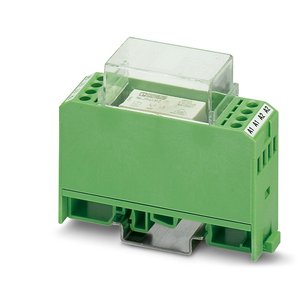

EMG 22-REL/KSR- 24/21: 2951885 - Phoenix Medium Load 1 PDT 24V Relay
Technical Specifications of Phoenix Medium Load 1 PDT 24V Relay EMG 22-REL/KSR- 24/21 2951885:
Spec | Value |
---|---|
Product type | Relay Module |
Nominal input voltage UN | 24 V AC/DC |
Connection method | Screw connection |
Mounting type | DIN rail mounting |
Phoenix 230VAC / 220VDC power Relay PLC-RSC-230UC/21-21/MS, 2910506 Technical Specifications:
Specification | Value |
---|---|
Product type | Relay Module |
Product family | EMG |
Application | Universal |
Mechanical service life | approx. 5x 107 cycles |
Insulation | Basic insulation |
Overvoltage category | III |
Pollution degree | 2 |
Maximum power dissipation for nominal condition | 0.43 W |
Test voltage (Winding/contact) | 5 kVrms (50 Hz, 1 min., winding/contact) |
Test voltage (Changeover contact/changeover contact) | - |
Rated surge voltage | 4 kV |
Nominal input voltage UN | 24 V AC/DC |
Input voltage range | 19.2 V AC/DC ... 26.4 V AC/DC (20 °C) |
Drive and function | monostable |
Drive (polarity) | polarized |
Typical input current at UN | 18 mA |
Typical response time | 8 ms |
Typical release time | 10 ms |
Protective circuit | Bridge rectifier; Bridge rectifier |
Operating voltage display | Yellow LED |
Contact switching type | 1 changeover contact |
Type of switch contact | Single contact |
Contact material | AgNi |
Maximum switching voltage | 250 V AC/DC |
Limiting continuous current | 6 A |
Maximum inrush current | 8 A |
Min. switching current | - |
Interrupting rating (ohmic load) max. | 144 W (at 24 V DC) |
Switching capacity | - |
Connection method | Screw connection |
Stripping length | 8 mm |
Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 |
Tightening torque | - |
Width | 22.5 mm |
Height | 75 mm |
depth | 62.5 mm |
Color | green (RAL 6021) |
Flammability rating according to UL 94 | - |
Degree of protection (Relay) | - |
Degree of protection (Relay base) | - |
Ambient temperature (operation) | -20 °C ... 50 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Temperature | - |
Humidity | - |
Vibration | - |
EMC | - |
Enclosure | - |
Low Voltage Directive | - |
Electromagnetic compatibility | - |
Standards/regulations | IEC 60664-1 |
Mounting Type | DIN rail mounting |
Mounting position | any |
Contact Connection type | - |
Output fuse | - |
Degree of protection (Installation location) | - |
Call us for Phoenix Medium Load 1 PDT 24V Relay EMG 22-REL/KSR- 24/21 part no: 2951885 at the best rates. Technical Attributes of EMG 22-REL/KSR- 24/21, 2951885 are Relay Module type and EMG Product family a versatile solution for Universal applications. This relay module features a mechanical service life of approx. 5x 107 cycles, ensuring durability and reliability. With a maximum power dissipation of 0.43 W, it operates efficiently at a nominal input voltage of 24 V AC/DC, within an input voltage range of 19.2 V AC/DC ... 26.4 V AC/DC (20 °C). The module has a typical input current of 18 mA at UN, with a response time of 8 ms and a release time of 10 ms. It is equipped with a Bridge rectifier; Bridge rectifier for protection and includes 1 changeover contact made from Screw connection Connection method. Unlock Exclusive Pricing with a Quote for your requirement of Phoenix Medium Load 1 PDT 24V Relay. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
