Pepperl Fuchs Sensor-Actuator Cables

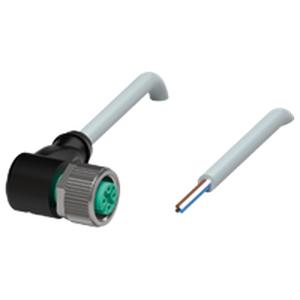

V1-W-2M-PVC
The Technical specifications for the V1-W-2M-PVC:
- M12 Female type
- Locking screw connection
- 4 pins
- M12 x 1 connector plug connection
- PVC Type Length of 2 meters.
Original price was: ₹1,500.00.₹750.00Current price is: ₹750.00.
Out of stock
Pepperl Fuchs V1-W-2M-PVC Technical Specifications:
P&F V1-W-2M-PVC Sensor-Actuator Cable is a dependable and sturdy cable option suitable for a range of industrial applications. This female-type M12 cable features a locking screw connection, 4 pins, and an M12 x 1 connector plug connection. With a length of 2 meters, this cable provides ample length for various applications.
| Connector 1 | ||
| Connection | socket | |
| Construction type | M12 | |
| Style | angled | |
| Locking | screw connection | |
| Number of pins | 4 | |
| Coding | A-coded | |
| Connector 2 | ||
| Connection | cable end | |
| Operating voltage | max. 250 V AC/DC | |
| Operating current | max. 4 A | |
| Degree of protection | EN 60529 | |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 | |
| Flammability | IEC 60332-2-2 | |
| Ambient temperature | ||
| Plug connector | -40 … 90 °C (-40 … 194 °F) | |
| Cable, fixed | -25 … 70 °C (-13 … 158 °F) | |
| Cable, flexing | -5 … 70 °C (23 … 158 °F) | |
| Pollution degree | 3 | |
| Plug connector | ||
| Tightening torque | 0.6 Nm | |
| Loosening protection | available | |
| Tool installation | straight knurling | |
| Mating cycles | min. 100 | |
| Degree of protection | IP67 / IP68 / IP69 | |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 5 | |
| Sheath diameter | 4.8 mm | |
| Bending radius | > 10 x cable diameter, moving | |
| Sheath stripping force | max. 80 N / 300 mm | |
| Sheath color | grey (similar to RAL 7001) | |
| Number of cores | 4 | |
| Core cross-section | 0.34 mm2 | |
| Cores color | Core 1: brown Core 2: white Core 3: blue Core 4: black |
|
| Core construction | 19 x 0.15 mm ∅ | |
| Length | 2 m | |
| Cable code | Li Y YM 4 x 0,34 | |
| Plug connector | ||
| Screw connection | Zinc diecast, nickel-plated | |
| Body | TPU, black | |
| Contact surface | Au | |
| Flammability | V-2 | |
| Cable | ||
| Sheathing | PVC | |
| Core insulation | PVC | |
| Flammability | flame-resistant | |
Challaturu Automation offers Pepperl Fuchs V1-W-2M-PVC M12 Sensor Connector at wholesale rates, You can rest assured that the P&F V1 W 2M PVC L Type Sensor Connector from Pepperl Fuchs is the best in terms of both durability and performance. With a socket construction type, M12 style, and angled screw connection, the four-pin, A-coded cable has a locking screw connection and M12 x 1 connector plug connection. It is designed with a maximum operating voltage of 250 V AC/DC and a maximum operating current of 4 A. The cable is also flame-resistant, ensuring safety during usage.
With a tightening torque of 0.6 Nm, loosening protection, and tool installation via straight knurling, the connector can withstand a minimum of 100 mating cycles. It is rated with a degree of protection of IP67 / IP68 / IP69 and can operate at temperatures ranging from -40 to 90 °C (-40 to 194 °F). The cable is built with a sheath diameter of 4.8 mm and can bend at a radius greater than 10 times the cable diameter when moving. The four-core cable has a cross-section of 0.34 mm2, and the cores are color-coded for easy identification.
At Challaturu Engg & Automation Pvt Ltd, we offer the best rates for Pepperl+Fuchs V31-GM-2M-PVC Sensor Connector. Buy P&F V1-W-2M-PVC now and avail of our exciting offers on your purchase.
