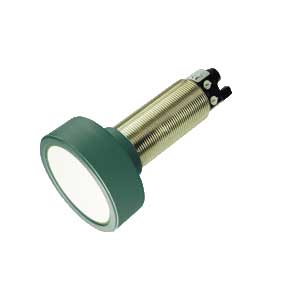

Pepperl Fuchs UC6000-30GM70-2E2R2-V15 Ultrasonic Sensor
The Pepperl Fuchs UC6000-30GM70-2E2R2-V15 Ultrasonic Sensor offers a Cylindrical design, 350 ... 6000 mm sensing range, 2 switch outputs PNP, NO ( NC contact programmable ) output, and Connector plug M12 x 1 , 5-pin connection. Manufactured by Pepperl Fuchs under the P&F Ultrasonic Sensor category, this model belongs to the diffuse reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Ultrasonic Sensor |
| Model Number | UC6000-30GM70-2E2R2-V15 |
Pepperl Fuchs UC6000-30GM70-2E2R2-V15 Ultrasonic Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Type of Sensing | Diffuse Reflective |
| Design | Cylindrical |
| Sensing range | 350 ... 6000 mm |
| Adjustment range | 400 ... 6000 mm |
| Dead band | 0 ... 350 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx. 80 kHz |
| Response delay | ≤ 275 ms |
| LED green | Teach-In |
| LED yellow 1 | solid Switching state switch output 1 |
| LED yellow 2 | switching state switch output 2 |
| LED red | - |
| Operating voltage | 12 ... 30 V DC (including ripple) |
| Output type | 2 switch outputs PNP, NO ( NC contact programmable ) |
| Default setting | 400 ... 6000 mm ( adjustable via potentiometer ) |
| Repeat accuracy | ± 9 mm |
| Switching frequency | ≤ 1 Hz |
| Range hysteresis | Switching hysteresis, 60 mm ( programmable ) |
| Temperature influence | - |
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 |
| UL approval | cULus Listed, Class 2 Power Source |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Connection type | Connector plug M12 x 1 , 5-pin |
| Degree of protection | IP65 |
| Material Housing | brass, nickel-plated |
Ask for the Pricing of Pepperl Fuchs 80 kHz Ultrasonic Sensor UC6000-30GM70-2E2R2-V15 at unbeatable prices. Detailed Specifications of UC6000-30GM70-2E2R2-V15, feature Diffuse Reflective, Cylindrical design with a sensing range of 350 ... 6000 mm and an adjustment range of 400 ... 6000 mm. It has a dead band of 0 ... 350 mm and uses a standard target plate of 100 mm x 100 mm. The transducer frequency is approximate approx. 80 kHz, and the response delay of ≤ 275 ms. Operating at 12 ... 30 V DC (including ripple), the sensor includes 2 switch outputs PNP, NO ( NC contact programmable ) with default 400 ... 6000 mm ( adjustable via potentiometer ). It offers repeat accuracy of ± 9 mm, a switching frequency of ≤ 1 Hz, range hysteresis of Switching hysteresis, 60 mm ( programmable ). The sensor operates in ambient temperatures from -25 ... 70 °C (-13 ... 158 °F) and can be stored in temperatures from -40 ... 85 °C (-40 ... 185 °F). Now's the Time to Secure a Quote for your requirement of Pepperl Fuchs 80 kHz Ultrasonic Sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
