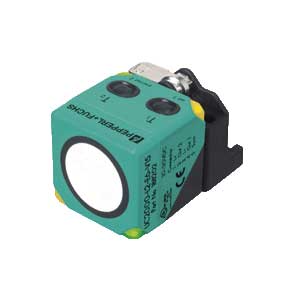

Pepperl Fuchs UC4000-L2-E6-V15 Ultrasonic Sensor
The Pepperl Fuchs UC4000-L2-E6-V15 Ultrasonic Sensor offers a Rectangular design, 200 ... 4000 mm sensing range, 2 switch outputs PNP, NO/NC, programmable output, and Connector plug M12 x 1 , 5-pin connection. Manufactured by Pepperl Fuchs under the P&F Ultrasonic Sensor category, this model belongs to the diffuse reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Ultrasonic Sensor |
| Model Number | UC4000-L2-E6-V15 |
Pepperl Fuchs UC4000-L2-E6-V15 Ultrasonic Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Type of Sensing | Diffuse Reflective |
| Design | Rectangular |
| Sensing range | 200 ... 4000 mm |
| Adjustment range | 240 ... 4000 mm |
| Dead band | 0 ... 200 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx. 85 kHz |
| Response delay | minimum: 110 ms, factory setting: 280 ms |
| LED green | Operating display |
| LED yellow 1 | switching state switch output 1 |
| LED yellow 2 | switching state switch output 2 |
| LED red | error |
| Operating voltage | 10 ... 30 V DC , ripple 10 %SS |
| Output type | 2 switch outputs PNP, NO/NC, programmable |
| Default setting | - |
| Repeat accuracy | ≤ 0.1 % of full-scale value |
| Switching frequency | ≤ 2.8 Hz |
| Range hysteresis | programmable , preset to 1 mm |
| Temperature influence | < 1.5 % of full-scale value |
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 |
| UL approval | cULus Listed, Class 2 Power Source |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Connection type | Connector plug M12 x 1 , 5-pin |
| Degree of protection | IP67 |
| Material Housing | PA-GF35 |
Mail Us for your needs in P&F 2 Switch Outputs Ultrasonic Sensor UC4000-L2-E6-V15 with budget-friendly prices. The Main Technical Parameters of UC4000-L2-E6-V15 include Diffuse Reflective, Rectangular design with a sensing range of 200 ... 4000 mm and an adjustment range of 240 ... 4000 mm. It has a dead band of 0 ... 200 mm and uses a standard target plate of 100 mm x 100 mm. The transducer frequency is approximate approx. 85 kHz, and the response delay of minimum: 110 ms, factory setting: 280 ms. Operating at 10 ... 30 V DC , ripple 10 %SS, the sensor includes 2 switch outputs PNP, NO/NC, programmable. It offers repeat accuracy of ≤ 0.1 % of full-scale value, a switching frequency of ≤ 2.8 Hz, range hysteresis of programmable , preset to 1 mm, and a temperature influence of < 1.5 % of full-scale value. The sensor operates in ambient temperatures from -25 ... 70 °C (-13 ... 158 °F) and can be stored in temperatures from -40 ... 85 °C (-40 ... 185 °F). It feature Connector plug M12 x 1 , 5-pin, an IP67 protection rating, and an PA-GF35 housing. Customize Your Experience with a Quote for your requirement of P&F 2 Switch Outputs Ultrasonic Sensor. Experience the difference with our competitive pricing and superior support over other Suppliers.
