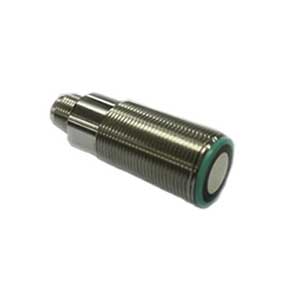

UB300-18GM40-I-V1-Y70147386: P&F 35mm Ultrasonic Sensor
Technical Specifications of P&F 35mm Ultrasonic Sensor UB300-18GM40-I-V1-Y70147386:
| Spec | Value |
|---|---|
| Design | Cylindrical |
| Sensing Range | 35 ... 300 mm |
| Output Type | 1 analog output 4 ... 20 mA, short-circuit/overload protected |
| Connection Type | Connector plug M12 x 1 , 4-pin , metal |
P&F 35mm Ultrasonic Sensor UB300-18GM40-I-V1-Y70147386 Technical Specifications:
| Specification | Value |
|---|---|
| Type of Sensing | Diffuse Reflective |
| Design | Cylindrical |
| Sensing range | 35 ... 300 mm |
| Adjustment range | 50 ... 300 mm |
| Dead band | 0 ... 35 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx. 390 kHz |
| Response delay | approx. 50 ms |
| LED green | - |
| LED yellow 1 | - |
| LED yellow 2 | - |
| LED red | - |
| Operating voltage | 10 ... 30 V DC , ripple 10 %SS |
| Output type | 1 analog output 4 ... 20 mA, short-circuit/overload protected |
| Default setting | evaluation limit A1: 50 mm evaluation limit A2: 300 mm |
| Repeat accuracy | ± 0.5 % of full-scale value |
| Switching frequency | - |
| Range hysteresis | - |
| Temperature influence | ± 1.5 % of full-scale value |
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003 |
| UL approval | cULus Listed, Class 2 Power Source |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Connection type | Connector plug M12 x 1 , 4-pin , metal |
| Degree of protection | IP67 |
| Material Housing | Stainless steel 1.4305 / AISI 303 |
Mail Us for your needs in P&F 35mm Ultrasonic Sensor UB300-18GM40-I-V1-Y70147386 with budget-friendly prices. The Main Technical Parameters of UB300-18GM40-I-V1-Y70147386 include Diffuse Reflective, Cylindrical design with a sensing range of 35 ... 300 mm and an adjustment range of 50 ... 300 mm. It has a dead band of 0 ... 35 mm and uses a standard target plate of 100 mm x 100 mm. The transducer frequency is approximate approx. 390 kHz, and the response delay of approx. 50 ms. Operating at 10 ... 30 V DC , ripple 10 %SS, the sensor includes 1 analog output 4 ... 20 mA, short-circuit/overload protected with default evaluation limit A1: 50 mm evaluation limit A2: 300 mm. It offers repeat accuracy of ± 0.5 % of full-scale value and a temperature influence of ± 1.5 % of full-scale value. The sensor operates in ambient temperatures from -25 ... 70 °C (-13 ... 158 °F) and can be stored in temperatures from -40 ... 85 °C (-40 ... 185 °F). It feature Connector plug M12 x 1 , 4-pin , metal, an IP67 protection rating, and an Stainless steel 1.4305 / AISI 303 housing. Customize Your Experience with a Quote for your requirement of P&F 35mm Ultrasonic Sensor. Experience the difference with our competitive pricing and superior support over other Suppliers.
