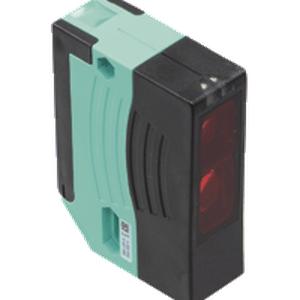

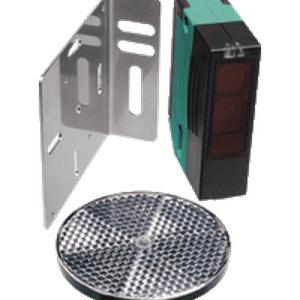

RLK29-55/59/116
Challaturu offers the perfect solution for the Photoelectric Switch RLK29-55/59/116 sensor, with a 12m range, Robust, compact, long-range photoelectric sensors for detecting people, and a terminal compartment.
RLK29-55/59/116 Technical Specifications:
| Detection range | 0 … 12 m | |
| Threshold detection range | 14 m | |
| Reflector distance | 0.04 … 12 m | |
| Reference target | H85-2 reflector | |
| Light source | LED | |
| Light type | modulated visible red light, 640 nm | |
| Operation indicator | LED green: power on | |
| Operating voltage | 24 … 230 V AC/DC | |
| Switching voltage | 230 V AC | |
| Signal output | Relay, 1 alternator | |
| Switching type | light-on | |
| Switching frequency | 7 Hz | |
| Response time | 50 ms | |
| Ambient temperature | -20 … 60 °C (-4 … 140 °F) | |
| Degree of protection | IP67 | |
| Connection | terminal compartment | |
Product Documentation: RLK29-55/59/116
Related Products: RLK29-55/59/116
OBT300-R100-2EP-IO-V31-L
Type: Triangulation PhotoSensor, Detection range: 7 … 300 mm, Light source: Laser diode, modulated visible red light, Operating voltage: 10 … 30 V DC, Switching type: Light-on/dark-on electrically switchable, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 1650 Hz, Response time: 300 µs, Housing (WxHxD): 11 mm x 44.5 mm x 21.5 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: M8 x 1 connector, 4-pin, Housing material: PC (Polycarbonate).
OBT200-18GM60-E5-V1
Type: Diffuse mode Photosensor, Detection range: 0 … 200 mm, Light source: IRED (Infrared Emitting Diode), 880 nm, Operating voltage: 10 … 30 V DC, class 2, Switching type: Light/dark-on, electrically switchable, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching voltage: Max. 30 V DC, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): Not specified, Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: Brass, nickel-plated.
OBT30-R2F-E2
Type: Triangulation Sensor, Detection range: 1 … 30 mm, Light source: LED (modulated visible red light, 630 nm), Operating voltage: 10 … 30 V DC, Switching type: NO contact / light-on, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: Approx. 1 kHz, Response time: 500 µs, Housing (WxHxD): 12 mm x 25.5 mm x 4.1 mm, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: PC (Polycarbonate) and Stainless steel, Cable Length: 2 m.
M100/MV100-RT/76a/103/115
Type: Through Beam photoelectric sensor, Detection range: 0 … 10 m (Effective detection range), Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Adjustable (default: light-on), Signal output: 1 PNP output (short-circuit protected, reverse polarity protected, open collector), Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing dimensions: Width 11 mm, Height 31 mm, Depth 20 mm, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: PC (Polycarbonate), Cable length: 2 m.
ML100-8-1000-RT/103/115
Type: Diffuse photoelectric sensor, Detection range: 0 … 1000 mm, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: Adjustable (default setting: light-on), Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing: 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: 2 m fixed cable, Housing: PC (Polycarbonate), Cable length: 2 m.
OBD300-12GM40-E5-V1
Type:Diffuse mode Photosensor, Detection range: 0 … 300 mm, Light source: LED, red, 640 nm, Operating voltage: 10 … 30 V DC, class 2, Switching type: Light/dark on, electrically switchable, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: ≤ 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): M12 threaded housing design, Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: Brass, nickel-plated.
RL31-8-H-800-RT/73c/136
Type:Background suppression sensor, Detection range: 50 … 800 mm, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: Dark-on, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, Switching frequency: 200 Hz, Response time: 2.5 ms, Housing (WxHxD): 18 mm x 62 mm x 35 mm, Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: Polycarbonate.
RL31-54/73c/136
Type:Retroreflective Sensor, Detection range: 0 … 9000 mm, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: Dark-on, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, Switching frequency: ≤ 500 Hz, Response time: ≤ 1 ms, Housing (WxHxD): 18 mm x 62 mm x 35 mm, Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: Plastic.
RL29-8-2000/59/73c/136
Type:Diffuse mode sensor, Detection range: 0 … 2000 mm, Light source: LED (640 nm), Operating voltage: 10 … 30 V DC, class 2, Switching type: Dark-on, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, Switching frequency: 125 Hz, Response time: 4 ms, Housing (WxHxD): 25.8 mm x 88 mm x 54.3 mm, Degree of protection: IP65, Connection: Plastic connector M12 x 1, 4-pin, Housing material: Plastic ABS.
RL28-8-H-2000-IR/105/110
Type:Background suppression sensor, Detection range: 20 … 2000 mm, Light source: IRED (Infrared), Operating voltage: 10 … 30 V DC, Switching type: Light/dark on switchable, Signal output: 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected, Switching frequency: 250 Hz, Response time: 2 ms, Housing (WxHxD): 25.8 mm x 88 mm x 54.3 mm, Degree of protection: IP67, Connection: 5-pin, M12 x 1 connector, Housing material: Plastic ABS.
ML100-55-G/102/115
Type:Retroreflective sensor, Detection range: 0 … 2.5 m, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Adjustable (default setting: light-on), Signal output: 1 NPN output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: PC (Polycarbonate), Cable Length: 2 m.
ML100-55-G-103-115
Type:Retroreflective sensor, Detection range: 0 … 5 m, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Adjustable (default setting: light-on), Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: PC (Polycarbonate), Cable length: 2 m.
ML100-55/98/103
Type:Retroreflective sensor, Detection range: 0 … 5 m, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Adjustable (default setting: light-on), Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: M8 plug, 3-pin, Housing material: PC (Polycarbonate).
ML100-55-103-115a
Type:Retroreflective sensor, Detection range: 0 … 5 m, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Adjustable (default setting: light-on), Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: 300 mm fixed cable with M8 connector, 4-pin, Housing material: PC (Polycarbonate), Cable Length: 0.3 m.
ML100-8-H-350-RT/102/115
Type:Background suppression sensor, Detection range: 5 … 350 mm, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Adjustable (default setting: light-on), Signal output: 1 NPN output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: PC (Polycarbonate), Cable Length: 2 m.
M100/MV100-RT/76a/95/103
Type:Thru-beam sensor, Detection range: 0 … 10 m, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Light/dark on (adjustable), Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: M8 plug, 4-pin, Housing material: PC (Polycarbonate).
OBT300-R100-2EP-IO-L
Type:Triangulation sensor , Detection range: 7 … 300 mm, Light source: Laser diode (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Adjustable (C/Q – BK: NPN normally open / light-on, PNP normally closed / dark-on, IO-Link), Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 1650 Hz, Response time: 300 µs, Housing (WxHxD): 11 mm x 37.1 mm x 21.5 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: 2 m fixed cable, Housing material: PC (Polycarbonate), Cable Length: 2 m.
OBT50-R2-E2
Type:Triangulation sensor, Detection range: 3 … 50 mm, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, class 2, Switching type: NO contact / light on, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: Approx. 800 Hz, Response time: 600 µs, ,Housing (WxHxD): 7.5 mm x 24 mm x 11.2 mm ,Degree of protection: IP67 Connection: 2 m fixed cable, Housing material: PC/ABS and TPU, Cable Length: 2 m.
OBT40-R102-2P1-IO-V31
Type:Triangulation sensor, Detection range: 10 … 40 mm, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: C/Q – Pin4: NPN normally closed / dark-on, PNP normally open / light-on, IO-Link / Q – Pin2: NPN normally open / light-on, PNP normally closed / dark-on, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): 13.9 mm x 31.9 mm x 18.3 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: M8 x 1 connector, 4-pin, Housing material: PC (Polycarbonate).
OBT300-R200-2EP-IO-V1
Type:Triangulation sensor, Detection range: 30 … 300 mm, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: C/Q – Pin4: NPN normally open / light-on, PNP normally closed / dark-on, IO-Link / Q – Pin2: NPN normally closed / dark-on, PNP normally open / light-on, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): 15 mm x 50.6 mm x 41.7 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: 4-pin, M12 x 1 connector, 90° rotatable, Housing material: PC (Polycarbonate).
The RLK29-55/59/116 Pepperl Fuchs Photoelectric Sensor has a detection range of 0 to 12 meters, with a threshold detection range of 14 meters. It can detect reflector distances ranging from 0.04 to 12 meters and uses H85-2 reflectors as the reference target.
The device uses modulated visible red light with a wavelength of 640 nm and is equipped with an LED light source. The operation indicator is a green LED that shows when the device is powered on. The operating voltage range is 24 to 230 V AC/DC, with a switching voltage of 230 V AC. The signal output is a relay with one alternator, and the switching type is light-on.
The device has a switching frequency of 7 Hz and a response time of 50 ms. It can operate in temperatures ranging from -20 to 60 °C (-4 to 140 °F) and has a degree of protection of IP67. The connection is made through a terminal compartment.
