P&F Retroreflective sensor
OBR2500-12GM40-E5-V1
Challaturu offers a Pepperl Fuchs Photoelectric sensor OBR2500-12GM40-E5-V1 with a Retroreflective sensor with polarization filter, M12 threaded housing design, metal housing, front optical face, 5 m detection range, red light, light/dark on, 1 PNP output, M12 plug.
OBR2500-12GM40-E5-V1 Technical Specifications:
| Effective detection range | 0 … 2500 mm |
| Reflector distance | 50 … 2500 mm |
| Threshold detection range | 3000 mm |
| Reference target | H50 reflector |
| Light type | red, 640 nm |
| Light source | LED |
| Operating voltage | 10 … 30 V DC, class 2 |
| Signal output | 1 PNP output, short-circuit protected, reverse polarity protected, open collector |
| Operation indicator | LED green: Power on |
| Function indicator | LED yellow ON: lights when the object is detected |
| Switching type | light/dark on electrically switchable |
| Response time | 0.5ms |
| Switching voltage | max. 30 V DC |
| Switching frequency | ≤ 1000 Hz |
| Ambient temperature | -30 … 60 °C (-22 … 140 °F) |
| Degree of protection | IP67 |
| Connection | 4-pin, M12 x 1 connector |
Product Documentation: OBR2500-12GM40-E5-V1
Related Products: OBR2500-12GM40-E5-V1
ML100-8-1000-RT/103/115
Type: Diffuse photoelectric sensor, Detection range: 0 … 1000 mm, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: Adjustable (default setting: light-on), Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing: 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: 2 m fixed cable, Housing: PC (Polycarbonate), Cable length: 2 m.
OBS4000-18GM60-E5-V1
Type: Reflective Photo Sensor, Detection range: 0 … 4 m, Light source: LED (modulated visible red light, 660 nm), Operating voltage: 10 … 30 V DC (class 2), Switching type: Light/dark on electrically switchable, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 500 Hz, Response time: 1 ms, Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: Brass, nickel-plated.
OBT300-R100-2EP-IO-V31-L
Type: Triangulation PhotoSensor, Detection range: 7 … 300 mm, Light source: Laser diode, modulated visible red light, Operating voltage: 10 … 30 V DC, Switching type: Light-on/dark-on electrically switchable, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 1650 Hz, Response time: 300 µs, Housing (WxHxD): 11 mm x 44.5 mm x 21.5 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: M8 x 1 connector, 4-pin, Housing material: PC (Polycarbonate).
OBT200-18GM60-E5-V1
Type: Diffuse mode Photosensor, Detection range: 0 … 200 mm, Light source: IRED (Infrared Emitting Diode), 880 nm, Operating voltage: 10 … 30 V DC, class 2, Switching type: Light/dark-on, electrically switchable, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching voltage: Max. 30 V DC, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): Not specified, Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: Brass, nickel-plated.
ML100-55/103/115
Type: Reflective Photo Sensor, Detection range: 0 … 5 m, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Adjustable (default: light-on), Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing dimensions (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: PC (Polycarbonate), Cable length: 2 m.
RL31-8-1200-RT/73c/136
Type:Diffuse mode Photosensor, Detection range: 0 … 1200 mm adjustable, Light source: LED, modulated visible red light, 630 nm, Operating voltage: 10 … 30 V DC, Switching type: Light-on, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, Switching frequency: ≤ 500 Hz, Response time: ≤ 1 ms, Housing (WxHxD): 18 mm x 62 mm x 35 mm, Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: Polycarbonate.
OBD300-12GM40-E5-V1
Type:Diffuse mode Photosensor, Detection range: 0 … 300 mm, Light source: LED, red, 640 nm, Operating voltage: 10 … 30 V DC, class 2, Switching type: Light/dark on, electrically switchable, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: ≤ 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): M12 threaded housing design, Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: Brass, nickel-plated.
RL31-8-H-800-RT/73c/136
Type:Background suppression sensor, Detection range: 50 … 800 mm, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: Dark-on, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, Switching frequency: 200 Hz, Response time: 2.5 ms, Housing (WxHxD): 18 mm x 62 mm x 35 mm, Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: Polycarbonate.
RL31-54/25/73c/136
Type:Retroreflective Sensor, Detection range: 0 … 9000 mm, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: Light-on, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, Switching frequency: ≤ 500 Hz, Response time: ≤ 1 ms, Housing (WxHxD): 18 mm x 62 mm x 35 mm, Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: Plastic.
ML100-55/98/103
Type:Retroreflective sensor, Detection range: 0 … 5 m, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Adjustable (default setting: light-on), Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: M8 plug, 3-pin, Housing material: PC (Polycarbonate).
ML100-8-H-350-RT/103/115a
Type: Background suppression sensor, Detection range: 5 … 350 mm, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Adjustable (default setting: light-on), Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: 300 mm fixed cable with M8 connector, 4-pin, Housing material: PC (Polycarbonate), Cable length: 0.3 m.
ML100-8-H-350-RT/98/103
Type: Background suppression sensor, Detection range: 5 … 350 mm, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Adjustable (default setting: light-on), Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: M8 plug, 3-pin, Housing material: PC (Polycarbonate).
GLV18-55/73/120
Type:Retroreflective sensor, Detection range: 0 … 4 m, Light source: LED (modulated visible red light, 640 nm), ,Operating voltage: 10 … 30 V DC, Switching type: Light/dark on, Signal output: 2 PNP, complementary, short-circuit protected, open collectors, Switching frequency: 500 Hz, Response time: ≤ 1 ms, Housing (WxHxD): N/A (not provided in the information), Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: PC (Polycarbonate).
M100/MV100-RT/76a/95/103
Type:Thru-beam sensor, Detection range: 0 … 10 m, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Light/dark on (adjustable), Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: M8 plug, 4-pin, Housing material: PC (Polycarbonate).
OBT30-R2-E2
Type:Triangulation sensor,Detection range: 1 … 30 mm, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: NO contact / light on, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: Approx. 800 Hz, Response time: 600 µs, Housing (WxHxD): 7.5 mm x 24 mm x 11.2 mm, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: PC/ABS and TPU, Cable Length: 2 m.
OBE12M-R100-S2EP-IO-V31
Type:Thru-beam sensor, Detection range: 0 … 12 m, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Adjustable switching type (default setting: C/Q – Pin4: NPN normally open/dark-on, PNP normally closed/light-on, IO-Link), Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 44.5 mm x 21.5 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: M8 x 1 connector, 4-pin, Housing material: PC (Polycarbonate).
OBR7500-R100-2EP-IO-0-3M-V1
Type:Retroreflective sensor, Detection range: 0 … 7.5 m, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: Adjustable switching type, Signal output: 2 push-pull (4 in 1) outputs, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 37.1 mm x 21.5 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: 300 mm fixed cable with M12 x 1, 4-pin connector, Housing material: PC (Polycarbonate), Cable Length: 0.3 m.
OBD1000-R100-2EP-IO-V31
Type:Diffuse mode sensor, Detection range: 2 … 1000 mm, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: Adjustable (C/Q – Pin4: NPN normally open / light-on, PNP normally closed / dark-on, IO-Link / Q – Pin2: NPN normally closed / dark-on, PNP normally open / light-on), Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 44.5 mm x 21.5 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: M8 x 1 connector, 4-pin, Housing material: PC (Polycarbonate).
OBT40-R102-2P1-IO-V31
Type:Triangulation sensor, Detection range: 10 … 40 mm, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: C/Q – Pin4: NPN normally closed / dark-on, PNP normally open / light-on, IO-Link / Q – Pin2: NPN normally open / light-on, PNP normally closed / dark-on, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): 13.9 mm x 31.9 mm x 18.3 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: M8 x 1 connector, 4-pin, Housing material: PC (Polycarbonate).

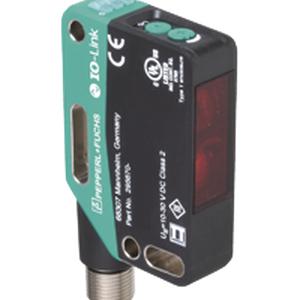

OBR15M-R200-2EP-IO-V1
