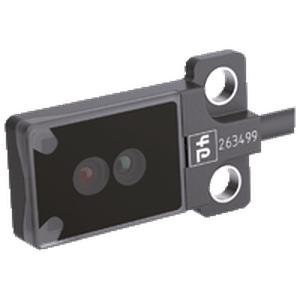

Home Products Photoelectric Sensor Pepperl Fuchs OBR1500-R3F-E2-0,2M-V31-L Pepperl Fuchs OBR1500-R3F-E2-0,2M-V31-L Photoelectric Sensor The Pepperl Fuchs OBR1500-R3F-E2-0,2M-V31-L Photoelectric Sensor offers a 0 ... 1500 mm detection range, LASER LIGHT light source, and 200 mm fixed cable with 4-pin, M8x1 connector connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.
Brand Pepperl Fuchs Product Type Photoelectric Sensor Model Number OBR1500-R3F-E2-0,2M-V31-L
Pepperl Fuchs OBR1500-R3F-E2-0,2M-V31-L Photoelectric Sensor – Technical Specifications Specification Value Effective detection range 0 ... 1500 mm Reflector distance 60 ... 1500 mm Threshold detection range 1800 mm Reference target H40 reflector Light source LASER LIGHT Light type modulated visible red light , 680 nm Polarization filter yes Diameter of the light spot approx. 25 mm at a distance of 1500 mm Opening angle approx. 1 ° Optical face frontal Control elements - Operating voltage 12 ... 24 V Ripple - No-load supply current < 10 mA Switching type NO contact / dark-on Signal output 1 PNP output, short-circuit protected, reverse polarity protected, open collector Switching voltage max. 30 V DC Switching current max. 50 mA , resistive load Voltage drop ≤ 1.5 V DC Switching frequency approx. 2 kHz Response time 250 µs Ambient temperature -10 ... 60 °C (14 ... 140 °F) Storage temperature -20 ... 70 °C (-4 ... 158 °F) Degree of protection IP67 Connection 200 mm fixed cable with 4-pin, M8x1 connector Mass approx. 10 g Cable length 200 mm
