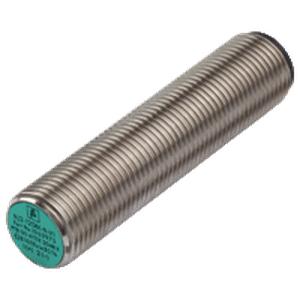

Pepperl Fuchs NJ2-12GM-N-V1 Proximity Sensor

The Pepperl Fuchs NJ2-12GM-N-V1 Proximity Sensor offers a 2 mm operating distance, 2-wire, Normally closed (NC), output, and flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.

Pepperl Fuchs NJ2-12GM-N-V1
Datasheet
BrandPepperl Fuchs
ProductProximity Sensor
Model NumberNJ2-12GM-N-V1

Pepperl Fuchs NJ2-12GM-N-V1 Proximity Sensor – Technical Specifications

SpecificationValue
Switching functionNormally closed (NC)
Output type2-wire
Rated operating distance2 mm
Installationflush
Assured operating distance0 ... 1.62 mm
Nominal voltage8.2 V (Riapprox. 1 kΩ)
Switching frequency0 ... 2000 Hz
Hysteresis3 %
Ambient temperature-25 ... 100 °C (-13 ... 212 °F)
Connection typeConnector plug
Housing materialStainless steel 1.4305 / AISI 303
Sensing facePBT
Degree of protectionIP67

Related Products

NJ4-12GM-N-5MNJ4-12GM-N-5M

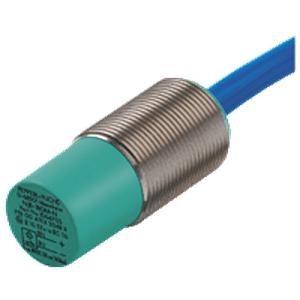

NJ8-18GM-N-5MNJ8-18GM-N-5M
