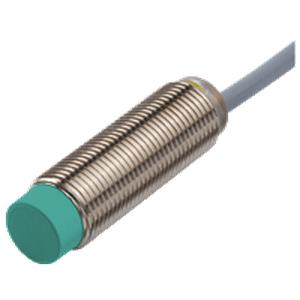

Home Products Proximity Sensor Pepperl Fuchs NCN4-12GM40-Z0 Pepperl Fuchs NCN4-12GM40-Z0 Proximity Sensor The Pepperl Fuchs NCN4-12GM40-Z0 Proximity Sensor offers a 4 mm operating distance, 2-wire, Normally open (NO), output, and non-flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.
Brand Pepperl Fuchs Product Proximity Sensor Model Number NCN4-12GM40-Z0
Pepperl Fuchs NCN4-12GM40-Z0 Proximity Sensor – Technical Specifications Specification Value Switching function Normally open (NO) Output type 2-wire Rated operating distance 4 mm Installation non-flush Assured operating distance 0 ... 3.24 mm Switching frequency 0 ... 800 Hz Hysteresis 1 ... 10 % typ. 5 % Reverse polarity protection reverse polarity tolerant Short-circuit protection pulsing Switching state indicator all direction LED, yellow Ambient temperature -25 ... 70 °C (-13 ... 158 °F) Connection type cable Housing material Stainless steel 1.4305 / AISI 303 Sensing face PBT Degree of protection IP67 Mass 52 g
