Home / Products / Proximity Sensor / Pepperl Fuchs / Inductive Sensor/ NCB15-30GM50-Z4-V1
Pepperl Fuchs Inductive Sensors

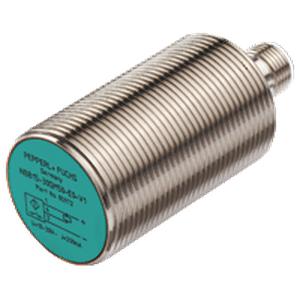

NCB15-30GM50-Z4-V1
NCB15-30GM50-Z4-V1 Technical Specifications:
Challaturu has the perfect solution to meet your industrial sensing needs with the P&F proximity switch NCB15-30GM50-Z4-V1. This high-quality sensor offers a 15mm operating distance, 2-wire output, Normally Open (NO) switching function, and flush-type installation making it the perfect fit for your specific requirements.
| Sensor Head | M30 | |
| Switching Function | Normally open (NO) | |
| Output type | PNP | |
| Rated operating distance | 15 mm | |
| Installation | Flush | |
| Output Type | 2-wire | |
| Output polarity | DC | |
| Operating voltage | 3.5 … 30 V | |
| Switching frequency | 500 Hz | |
| Switching state indicator | LED, yellow | |
| Ambient temperature | -25 … 70 °C (-13 … 158 °F) | |
| Connection type | Connector plug M12 x 1 , 4-pin | |
| Housing material | brass, nickel-plated | |
| Sensing face | PBT | |
| Degree of protection | IP67 | |
Product Documentation: NCB15-30GM50-Z4-V1
Related Products: NCB15-30GM50-Z4-V1
NBB8-18GM60-A2-V1
Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 8 mm, Switching function: Complementary, Output type: PNP, Installation: Flush, Switching frequency: 0 … 1350 Hz, Output type: 4-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB8-18GM60-US
Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 8 mm, Switching function: Normally open (NO), Output type: Two-wire, Installation: Flush, Switching frequency: 30 Hz, Output type: 2-wire, Type of voltage: AC/DC, Connection type: Cable, Operating voltage: 20 … 250 V AC/20 … 300 V DC, Housing material: Brass with nickel-plating, Degree of protection: IP67.
NBN12-18GM50-A2-V1
Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 8 mm, Switching function: Normally open (NO), Output type: Two-wire, Installation: Flush, Switching frequency: 30 Hz, Output type: 2-wire, Type of voltage: AC/DC, Connection type: Cable, Operating voltage: 20 … 250 V AC/20 … 300 V DC, Housing material: Brass with nickel-plating, Degree of protection: IP67.
NBN12-18GM50-E0
Inductive Proximity Sensor, Rated operating distance: 12 mm, Switching function: Normally open (NO), Output type: NPN, Installation: Non-flush, Switching frequency: 0 … 1300 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68. Cable length: 2 m.
NBB5-18GM50-E2
Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 5 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 1950 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBN8-18GM50-E2
Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 8 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Non-flush, Switching frequency: 0 … 1650 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB5-18GM40-Z0
Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 5 mm, Switching function: Normally open (NO), Output type: Two-wire, Installation: Flush, Switching frequency: 0 … 500 Hz, Output type: 2-wire, Type of voltage: DC, Connection type: 2 m PVC cable, Operating voltage: 5 … 60 V, Housing material: Brass with nickel-plating, Degree of protection: IP67.
NBN8-12GM50-E2
Inductive Proximity Sensor, Sensor diameter: M12, Switching function: Normally open (NO), Output type: PNP, Installation: Non-flush, Switching frequency: 0 … 1650 Hz, Output type: 3-wire, Sensor length: 50mm, Type of voltage: DC, Connection type: 2 m PVC cable, Operating voltage: DC 5-36V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBN8-18GM50-E2-V1
Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 8 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Non-flush, Switching frequency: 0 … 1650 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB0 8-5GM25-E2
Inductive Proximity Sensor, Rated operating distance: 0.8 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 3000 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 10 … 30 V, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67.
NBB0 8-4M25-E2
Inductive Proximity Sensor, Rated operating distance: 0.8 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 3000 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 10 … 30 V, Housing material: Stainless steel 1.4305 / AISI 303, Sensing face: PC, Degree of protection: IP67.
NBB0 8-4M25-E0
Inductive Proximity Sensor, Rated operating distance: 0.8 mm, Switching function: Normally open (NO), Output type: NPN, Installation: Flush, Switching frequency: 0 … 3000 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 10 … 30 V, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67.
NBB0 6-4GM22-E2
Inductive Proximity Sensor, Rated operating distance: 0.6 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 1400 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 10 … 30 V, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67.
NBB0 6-3M22-E2
Inductive Proximity Sensor, Sensor diameter: 0.6mm, Rated operating distance: 0.6 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 1400 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 10 … 30 V, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67.
NBB2-12GM50-E2-V1
Inductive Proximity Sensor, Sensor diameter: M12, Rated operating distance: 2 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 1500 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: 4-pin M12 x 1 connector, Operating voltage: 10 … 30 V, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67.
Challaturu Automation Offers Pepperl Fuchs NCB15-30GM50-Z4-V1 is an outstanding example of the high-quality Proximity Sensor available from the P&F proximity switch range. Its technical specifications include a sensor head of M30, a Normally Open (NO) switching function, and a PNP output type, making it ideal for detecting metal objects in a wide range of industrial environments.
Designed with a flush installation, these Inductive Proximity Switches offer a rated operating distance of 15 mm, with a DC output polarity and 2-wire configuration enabling easy installation. Its operating voltage of 3.5 to 30 V and switching frequency of 500 Hz ensure reliable and accurate detection, while a yellow LED switching state indicator provides visual feedback of its operation.
Featuring a durable brass housing that is nickel-plated, along with a sensing face made of PBT, the P&F proximity switch NCB15-30GM50-Z4-V1 is built to withstand harsh industrial environments. Its IP67 degree of protection ensures reliable operation even in dusty and wet conditions.
You can check the P&F 15mm series with the Connector type.
