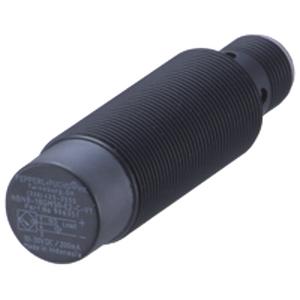

Home Products Proximity Sensor Pepperl Fuchs NBN8-18GM50-E2-C-V1 Pepperl Fuchs NBN8-18GM50-E2-C-V1 Proximity Sensor The Pepperl Fuchs NBN8-18GM50-E2-C-V1 Proximity Sensor offers a 8 mm operating distance, 3-wire, PNP, Normally open (NO), output, and non-flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.
Brand Pepperl Fuchs Product Proximity Sensor Model Number NBN8-18GM50-E2-C-V1
Pepperl Fuchs NBN8-18GM50-E2-C-V1 Proximity Sensor – Technical Specifications Specification Value Switching function Normally open (NO) Output type 3-wire, PNP Rated operating distance 8 mm Installation non-flush Output polarity DC Assured operating distance 0 ... 6.48 mm Operating voltage 10 ... 30 V DC Switching frequency 0 ... 500 Hz Hysteresis typ. 5% Reverse polarity protection reverse polarity protected Short-circuit protection pulsing Switching state indicator Multihole-LED, yellow Ambient temperature -25 ... 70 °C (-13 ... 158 °F) Connection type Connector plug M12 x 1 , 4-pin Housing material Brass, PTFE coated Sensing face PPS Degree of protection IP67
