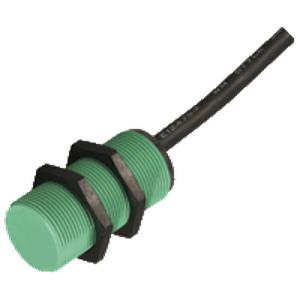

Pepperl Fuchs NBN15-30GK60-AR-1M Proximity Sensor

The Pepperl Fuchs NBN15-30GK60-AR-1M Proximity Sensor offers a 15 mm operating distance, Relay output, change-over contact, output, and non-flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.

Brand	Pepperl Fuchs
Product	Proximity Sensor
Model Number	NBN15-30GK60-AR-1M

Get Price & Availability Datasheet

Pepperl Fuchs NBN15-30GK60-AR-1M Proximity Sensor – Technical Specifications

Specification	Value
Switching function	change-over contact
Output type	Relay output
Rated operating distance	15 mm
Installation	non-flush
Output polarity	DC
Operating voltage	10 ... 30 V DC
Switching frequency	20 Hz
Hysteresis	approx. 10 %
Reverse polarity protection	yes
Short-circuit protection	no
Switching state indicator	LED, yellow
Ambient temperature	-40 ... 70 °C (-40 ... 158 °F)
Connection type	1-meter cable, PVC heavy jacket, 5-conductor, #18 AWG
Housing material	PBT
Sensing face	PBT
Degree of protection	IP68
