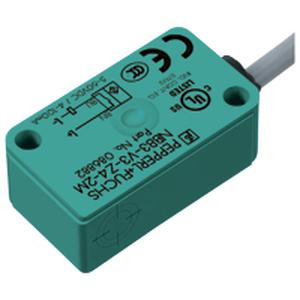

Pepperl Fuchs Inductive Proximity Sensors NBB3-V3-Z4
The technical specifications for NBB3-V3-Z4 are:
- Switching function: Normally open (NO)
- Output type: Two-wire
- Rated operating distance: 3 mm
- Installation: Flush
- Output polarity: DC
- Output type: 2-wire
- Operating voltage: 5 … 60 V DC
NBB3-V3-Z4 Technical Specifications:
| Switching function | Normally open (NO) |
| Output typeRated | Two-wire |
| Rated operating distance | 3 mm |
| Installation | flush |
| Output polarity | DC |
| Assured operating distance | 0 … 2.4 mm |
| Actual operating distance | 2.7 … 3.3 mm typ. |
| Reduction factor rAl | 0.45 |
| Reduction factor rCu | 0.35 |
| Reduction factor r304 | 0.8 |
| Reduction factor rBrass | 0.5 |
| Output type | 2-wire |
| Operating voltage | 5 … 60 V DC |
| Switching frequency | 0 … 2000 Hz |
| Hysteresis | typ. 0.2 mm |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | no |
| Inductive overvoltage protection | yes |
| Voltage drop | ≤ 4 V |
| Voltage drop IL = 10 mA, switching element on | 3.4 … 3.9 V typ. 3.6 V |
| Operating current | 4 … 100 mA |
| Lowest operating current | 4 mA |
| Off-state current | 0.4 … 0.55 mA typ. 0.46 mA |
| Time delay before availability | ≤ 1 ms |
| Switching state indicator | LED, yellow |
| Tightening torque, fastening screws | 0.4 Nm |
| MTTFd | 1552 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
| Standard conformity-Standards | EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 |
| UL approval | cULus Listed, General Purpose |
| CSA approval | cCSAus Listed, General Purpose |
| CCC approval | Certified by China Compulsory Certification (CCC) |
| Ambient temperature | -25 … 85 °C (-13 … 185 °F) |
| Connection type | cable PVC , 130 mm |
| Core cross-section | 0.14 mm2 |
| Housing material | PBT |
| Sensing face | PBT |
| Degree of protection | IP67 |
| Cable diameter | 3 mm ± 0.2 mm |
| Cable Bending radius | > 10 x cable diameter |
| Mass | 7.5 g |
