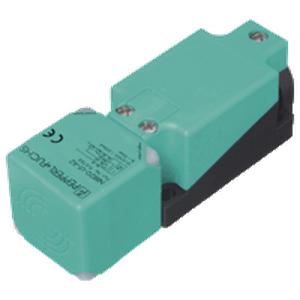

Home Products Proximity Sensor Pepperl Fuchs NBB20-U1-A0 Pepperl Fuchs NBB20-U1-A0 Proximity Sensor The Pepperl Fuchs NBB20-U1-A0 Proximity Sensor offers a 20 mm operating distance, 4-wire, NPN, complementary, output, and flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.
Brand Pepperl Fuchs Product Proximity Sensor Model Number NBB20-U1-A0
Pepperl Fuchs NBB20-U1-A0 Proximity Sensor – Technical Specifications Specification Value Switching function complementary Output type 4-wire, NPN Rated operating distance 20 mm Installation flush Output polarity DC Assured operating distance 0 ... 16.2 mm Operating voltage 10 ... 30 V DC Switching frequency 0 ... 440 Hz Hysteresis typ. 5 % Reverse polarity protection reverse polarity protected Short-circuit protection pulsing Switching state indicator LED, yellow Ambient temperature -25 ... 85 °C (-13 ... 185 °F) Connection type screw terminals Housing material PA/metal with epoxy powder coating Sensing face PA Degree of protection IP68 / IP69K Mass 225 g
