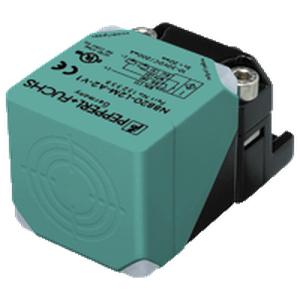

Home Products Proximity Sensor Pepperl Fuchs NBB20-L2-E2-C-V1 Pepperl Fuchs NBB20-L2-E2-C-V1 Proximity Sensor The Pepperl Fuchs NBB20-L2-E2-C-V1 Proximity Sensor offers a 20 mm operating distance, 3-wire, PNP, Normally open (NO), output, and flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.
Brand Pepperl Fuchs Product Proximity Sensor Model Number NBB20-L2-E2-C-V1
Pepperl Fuchs NBB20-L2-E2-C-V1 Proximity Sensor – Technical Specifications Specification Value Switching function Normally open (NO) Output type 3-wire, PNP Rated operating distance 20 mm Installation flush Output polarity DC Assured operating distance 0 ... 16.2 mm Operating voltage 10 ... 30 V DC Switching frequency 0 ... 5 Hz Hysteresis typ. 5 % Reverse polarity protection reverse polarity protected Short-circuit protection pulsing Switching state indicator LED, yellow Ambient temperature -25 ... 85 °C (-13 ... 185 °F) Storage temperature -25 ... 85 °C (-13 ... 185 °F) Connection type Connector plug M12 x 1 , 4-pin Housing material PA Sensing face PA Degree of protection IP69K Mass 130 g
