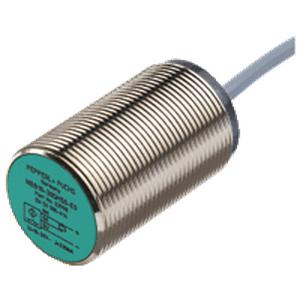

Home Products Proximity Sensor Pepperl Fuchs NBB10-30GM50-E2-C3-V1 Pepperl Fuchs NBB10-30GM50-E2-C3-V1 Proximity Sensor The Pepperl Fuchs NBB10-30GM50-E2-C3-V1 Proximity Sensor offers a 10 mm operating distance, 3-wire, PNP, Normally open (NO), output, and flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.
Brand Pepperl Fuchs Product Proximity Sensor Model Number NBB10-30GM50-E2-C3-V1
Pepperl Fuchs NBB10-30GM50-E2-C3-V1 Proximity Sensor β Technical Specifications Specification Value Switching function Normally open (NO) Output type 3-wire, PNP Rated operating distance 10 mm Installation flush Assured operating distance 0 ... 8.1 mm Switching frequency 0 ... 10 Hz Hysteresis typ. 5 % Reverse polarity protection reverse polarity protected Short-circuit protection pulsing Switching state indicator LED, yellow Ambient temperature -25 ... 70 Β°C (-13 ... 158 Β°F) Connection type Connector plug M12 x 1 , 4-pin Housing material Brass, PTFE coated Sensing face Ceramic coated Degree of protection IP67
