P&F Retroreflective Sensor
ML100-55/95/103
Challaturu offers Pepperl+Fuchs Photo sensor ML100-55/95/103 with Retroreflective sensor, 0 to 5m detection range, light/dark on, PNP output, and M8 Connector type sensor.
ML100-55/95/103 Technical Specifications:
| Type | Retroreflective sensor |
| Effective Detection range | 0 … 5 m |
| Reflector distance | 0.01 … 5 m |
| Threshold detection range | 7m |
| Light type | modulated visible red light |
| Light source | LED |
| Operating voltage | 10 … 30 V DC |
| Signal output | 1 PNP output, short-circuit protected, reverse polarity protected, open collector |
| Switching type | The switching type of the sensor is adjustable. The default setting is: light-on |
| Response time | 0.5ms |
| Switching frequency | 1000 Hz |
| Ambient temperature | -30 … 60 °C (-22 … 140 °F) |
| Degree of protection | IP67 |
| Connection | Connector M8 x 1 , 4-pin |
Product Documentation: ML100-55/95/103
Related Products: ML100-55/95/103
GLV18-8-450/115/120
Type: Diffuse photoelectric sensor, Detection range: 50 … 450 mm adjustable, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: Light/dark-on, Signal output: 2 PNP, complementary, short-circuit protected, open collectors, Switching frequency: 500 Hz, Response time: ≤ 1 ms, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: PC, Cable Length: 2 m.

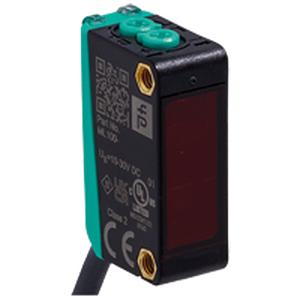

ML100-55/103/115
Type: Reflective Photo Sensor, Detection range: 0 … 5 m, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Adjustable (default: light-on), Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing dimensions (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: PC (Polycarbonate), Cable length: 2 m.
OBT30-R2F-E2
Type: Triangulation Sensor, Detection range: 1 … 30 mm, Light source: LED (modulated visible red light, 630 nm), Operating voltage: 10 … 30 V DC, Switching type: NO contact / light-on, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: Approx. 1 kHz, Response time: 500 µs, Housing (WxHxD): 12 mm x 25.5 mm x 4.1 mm, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: PC (Polycarbonate) and Stainless steel, Cable Length: 2 m.
OBT500-18GM60-E5
Type: Diffuse Type PhotoSensor, Detection range: 0 … 500 mm, Light source: IRED (Infrared), 880 nm, Operating voltage: 10 … 30 V DC, Switching type: Light/dark-on, electrically switchable, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 500 Hz, Response time: 1 ms, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: Brass, nickel-plated, Cable length: 2 m.
OBP120-R100-2EP-IO-V31-L
Type: Trigger Marks Sensor PhotoSensor, Detection range: 25 … 120 mm, Light source: Laser diode, modulated visible red light, Operating voltage: 10 … 30 V DC, Switching type: Adjustable switching type, default setting: light-on, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 3300 Hz, Response time: 125 µs, Housing (WxHxD): 11 mm x 44.5 mm x 21.5 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: M8 x 1 connector, 4-pin, Housing material: PC (Polycarbonate).
OBD300-12GM40-E5-V1
Type:Diffuse mode Photosensor, Detection range: 0 … 300 mm, Light source: LED, red, 640 nm, Operating voltage: 10 … 30 V DC, class 2, Switching type: Light/dark on, electrically switchable, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: ≤ 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): M12 threaded housing design, Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: Brass, nickel-plated.
RLK29-55/59/116
Type:Retroreflective Sensor, Detection range: 0 … 12 m, Light source: LED, Operating voltage: 24 … 230 V AC/DC, Switching type: Dark-on, Signal output: Relay, 1 alternator, Switching frequency: 7 Hz, Response time: 50 ms, Housing (WxHxD): Not specified, Degree of protection: IP67, Connection: Terminal compartment, Housing material: Plastic ABS, flame resistant.
M100-MV100-RT-76b-102-115
Type:Thru-beam sensor, Detection range: 0 … 10 m, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Light/dark on (adjustable), Signal output: 1 NPN output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: PC (Polycarbonate), Cable Length: 2 m.
ML100-8-H-350-RT/103/115b
Type: Background suppression sensor, Detection range: 5 … 350 mm, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Adjustable (default setting: light-on), Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: 300 mm fixed cable with M12 plug, 4-pin, Housing material: PC (Polycarbonate), Cable length: 0.3 m.
OBS4000-18GM60-E5
Type:Retroreflective sensor, Detection range: 0 … 4 m, Light source: LED (modulated visible red light, 660 nm), Operating voltage: 10 … 30 V DC, class 2, Switching type: Light/dark on (electrically switchable), Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 500 Hz, Response time: 1 ms, Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: Brass, nickel-plated.
OBR2500-12GM40-E5-V1
Type:Retroreflective Photosensor, Detection range: 0 … 2500 mm, Light source: LED, red, 640 nm, Operating voltage: 10 … 30 V DC, class 2, Switching type: Light/dark on, electrically switchable, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: ≤ 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): M12 threaded housing design, Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: Brass, nickel-plated.
RLK31-8-1200-RT/31/115
Type:Diffuse mode Photosensor, Detection range: 0 … 1200 mm adjustable, Light source: LED, modulated visible red light, 630 nm, Operating voltage: 24 … 240 V AC, 12 … 240 V DC, Switching type: Light-on, Signal output: Relay, 1 alternator, Switching frequency: 20 Hz, Response time: ≤ 25 ms, Housing (WxHxD): 18 mm x 62 mm x 35 mm, Degree of protection: IP67, Connection: 2 m fixed cable, 5-wire, Housing material: Polycarbonate, Cable Length: 2 m.
RL31-54/25/73c/136
Type:Retroreflective Sensor, Detection range: 0 … 9000 mm, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: Light-on, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, Switching frequency: ≤ 500 Hz, Response time: ≤ 1 ms, Housing (WxHxD): 18 mm x 62 mm x 35 mm, Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: Plastic.
RL29-8-2000/59/73c/136
Type:Diffuse mode sensor, Detection range: 0 … 2000 mm, Light source: LED (640 nm), Operating voltage: 10 … 30 V DC, class 2, Switching type: Dark-on, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, Switching frequency: 125 Hz, Response time: 4 ms, Housing (WxHxD): 25.8 mm x 88 mm x 54.3 mm, Degree of protection: IP65, Connection: Plastic connector M12 x 1, 4-pin, Housing material: Plastic ABS.
ML100-55-G/95/103
Type:Retroreflective sensor, Detection range: 0 … 2.5 m, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Adjustable (default setting: light-on), Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: Connector M8 x 1, 4-pin, Housing material: PC (Polycarbonate).
ML100-8-H-350-RT/102/115
Type:Background suppression sensor, Detection range: 5 … 350 mm, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Adjustable (default setting: light-on), Signal output: 1 NPN output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: PC (Polycarbonate), Cable Length: 2 m.
GLV18-55/73/120
Type:Retroreflective sensor, Detection range: 0 … 4 m, Light source: LED (modulated visible red light, 640 nm), ,Operating voltage: 10 … 30 V DC, Switching type: Light/dark on, Signal output: 2 PNP, complementary, short-circuit protected, open collectors, Switching frequency: 500 Hz, Response time: ≤ 1 ms, Housing (WxHxD): N/A (not provided in the information), Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: PC (Polycarbonate).
GD18/GV18/73/120
Type:Thru-beam sensor, Detection range: 0 … 20 m, Light source: LED (modulated visible red light, 640 nm), Operating voltage: 10 … 30 V DC, Switching type: Light/dark on, Signal output: 2 PNP, complementary, short-circuit protected, open collectors, Switching frequency: 500 Hz, Response time: ≤ 1 ms, Housing (WxHxD): N/A (not provided in the information), Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: PC (Polycarbonate).
OBG5000-R100-2EP-IO-V31
Type:Thru-beam sensor, Detection range: 0 … 3.5 m, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: Adjustable switching type, Signal output: 2 push-pull (4 in 1) outputs, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): 11 mm x 44.5 mm x 21.5 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: M8 x 1 connector, 4-pin, Housing material: PC (Polycarbonate).
OBT350-R100-2EP-IO-0-3M-V1
Type:Triangulation sensor , Detection range: 5 … 350 mm, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: Adjustable (C/Q – Pin4: NPN normally open / light-on, PNP normally closed / dark-on, IO-Link / Q – Pin2: NPN normally closed / dark-on, PNP normally open / light-on), Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): 11 mm x 37.1 mm x 21.5 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: 300 mm fixed cable with M12 x 1, 4-pin connector, Housing material: PC (Polycarbonate), Cable Length: 0.3 m.
The Pepperl Fuchs ML100-55/95/103 retroreflective sensor is designed to detect objects effectively within a detection range of 0 to 5 meters, with a reflector distance of 0.01 to 5 meters. The sensor has a threshold detection range of 7 meters and uses modulated visible red light with an LED light source.
It operates on an operating voltage of 10 to 30 V DC and has 1 PNP output, which is short-circuit protected, reverse polarity protected, and open collector. The switching type of the sensor is adjustable, with the default setting being light on.
The sensor has a fast response time of 0.5ms and a switching frequency of 1000 Hz. It is suitable for use in ambient temperatures ranging from -30 to 60 °C (-22 to 140 °F) and has a degree of protection of IP67. The Photoelectric sensor is easy to connect using a 4-pin, M8 x 1 connector.
You can check P&F Retroreflective sensor with Connector type.
