Omron ZE-N22-2 Limit Switch

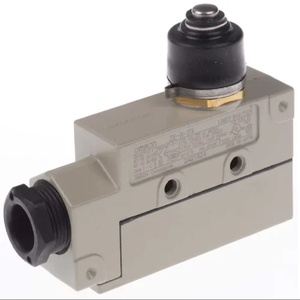

Omron ZE-N22-2 is an enclosed limit switch with a sealed roller plunger for reliable position detection in industrial machinery. The booted actuator helps protect the operating mechanism, while the roller provides smooth contact with cams, slides, and moving machine parts. Side mounting supports straightforward installation, and the SPDT built-in switch provides changeover control for AC circuits. IP65 protection and an operating speed from 0.01 mm/s to 0.5 m/s suit varied machine movement. The ZE-N22-2 belongs to the ZE Series within the sealed enclosed limit switch range from Omron industrial control products for machine travel and position monitoring.
| Brand | Omron |
| Product | Limit Switch |
| Model Number | ZE-N22-2 |
Omron ZE-N22-2 Limit Switch – Technical Specifications
| Specification | Value |
|---|---|
| Shape Structure | Sealed (Booted) |
| Ambient Temperature | −10°C to +80°C (with no icing) |
| Ambient Humidity | General-purpose type: 35% to 85%RH Sealed type: 35% to 95%RH |
| Shock Resistance | Destruction: 1,000m/s2 max. Malfunction: 100 m/s2 max. 50 m/s2 max |
| Degree Of Protection | IP65 |
| Durability | Mechanical: 10,000,000 operations min. Electrical: 500,000 operations min., for 15 A, 250 VAC resistive load |
| Insulation Resistance | 100 MΩ min. (at 500 VDC) |
| Built In Switch | SPDT (AC) |
| Mounting Direction | Side mounting |
| Dielectric Strength | Between terminals of the same polarity: 1,000 VAC, 50/60 Hz for 1 min Between current-carrying metal part and ground: 2,000 VAC, 50/60 Hz for 1 min Between each terminal and non-current-carrying metal part: 2,000 VAC, 50/60 Hz for 1 min |
| Actuator | Sealed roller plunger |
| Vibration Resistance | Malfunction: 10 to 55 Hz, 1.5-mm double amplitude |
| Operating Speed | 0.01 mm/s to 0.5 m/s |
| Operating Frequency | Mechanical: 120 operations/min Electrical: 20 operations/min |
| Contact Resistance | 15 mΩ max. (initial value) |
| Rated Frequency | 50/60 Hz |
| Weight | Approx. 260 to 280 g |
The Omron ZE-N22-2 Limit Switch uses a sealed roller plunger in a booted enclosure for reliable mechanical position detection. The roller actuator provides smooth contact with moving cams, slides, and machine parts, while the booted structure helps protect the operating mechanism in demanding industrial environments. Side mounting supports straightforward installation, and the SPDT built-in switch provides changeover switching for AC control circuits. Operating speed ranges from 0.01 mm/s to 0.5 m/s, with up to 120 mechanical operations per minute. IP65 protection supports factory use, and the operating temperature range extends from -10 to 80°C.
Mechanical durability is specified at 10 million operations minimum, while electrical durability reaches 500,000 operations minimum for a 15 A, 250 VAC resistive load. Initial contact resistance is 15 mΩ maximum, and insulation resistance is 100 MΩ minimum at 500 VDC. The ZE-N22-2 withstands destructive shock up to 1,000 m/s², while malfunction vibration resistance covers 10 to 55 Hz at 1.5 mm double amplitude. Sealed versions support up to 95% relative humidity. These characteristics make the model suitable for repeated roller-plunger position sensing where a booted actuator and side-mounting format are preferred. For another ZE Series enclosed switch from the supplied product range, see the ZE-N21-2 model.
